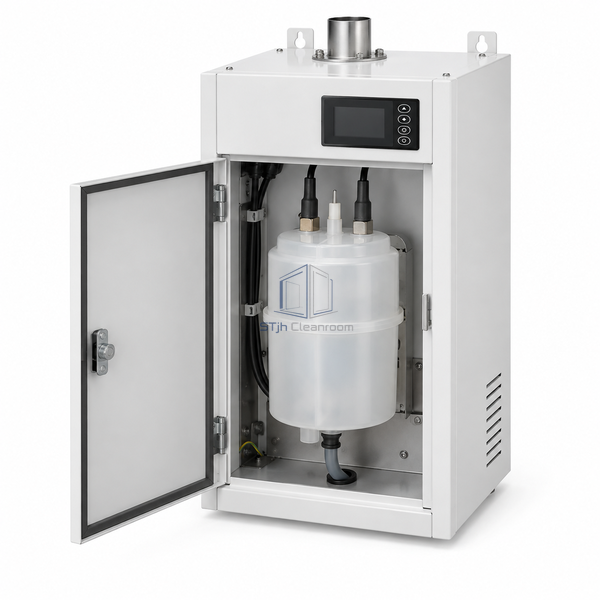

STjh 9 kg/h electrode steam humidifier with a small single cylinder visible inside its cabinet on white.

STJH-ELECTRODE-STEAM-HUMIDIFIER-9KGH

Electrode Steam Humidifier 9 kg/h

A compact single-cylinder steam generator for small cleanroom ducts using conductive potable water.

1.8-9 kg/h output
7.6 kW maximum input
Single steam cylinder

Request a Quote Browse Products

Product Introduction

This single-cylinder electrode humidifier modulates from approximately 1.8 to 9 kg/h and has a documented maximum input of 7.6 kW. Supply options span 208-600 V, allowing the cabinet to match common facility electrical systems. Steam production depends on water conductivity because the cylinder water completes the electrical circuit, so inlet-water quality and automatic drain behavior are central to reliable operation.

Key Features

Compact capacity range

The small cylinder covers local AHU and duct humidity loads without an oversized steam package.

Electrode self-regulation

Steam output follows water level and conductivity under the controller's fill and drain sequence.

Broad voltage selection

Available electrical arrangements support 208-600 V facility supplies.

Technical Parameters

Steam Output	1.8-9 kg/h
Maximum Input	7.6 kW
Steam Cylinders	1
Supply Voltage	208-600 V by selection
Heating Principle	Electrode boiling
Feed Water	Conductive potable water within selected limits
Control	Modulating output
Drain	Automatic conductivity and scale management
Primary Duty	Small duct humidification
Customization	Available based on the intended application and operating environment.

Applications

For small cleanroom AHUs, laboratories and local supply ducts requiring isothermal humidification from normal potable water.

Solutions for Your Application

Very low-conductivity water prevents the electrode cylinder from reaching rated output.Confirm inlet-water conductivity and use a humidifier technology suited to purified water if it falls outside the electrode range.

Steam condenses on duct surfaces before absorption is complete.Size the dispersion distance from actual duct temperature, airflow and humidity rise, and provide a drained distribution section.

Available Options

Confirm steam load, voltage, water conductivity, cylinder type, control signal, distributor, hose length, drain cooling and BMS alarms.
