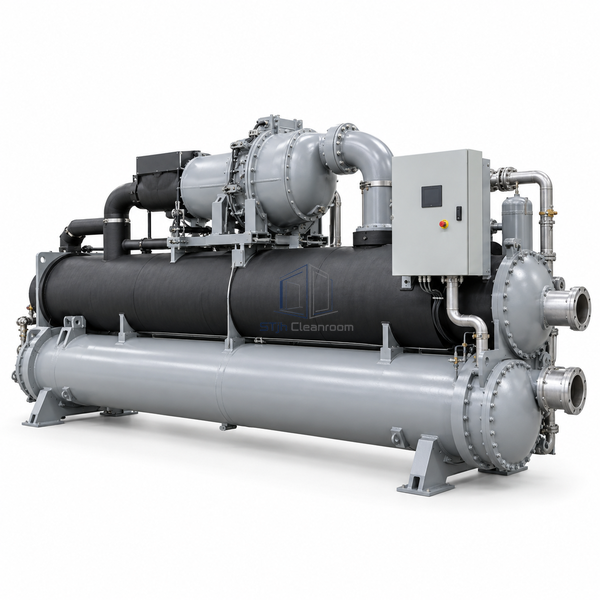

STjh 1407 kW water-cooled centrifugal chiller with extended horizontal heat-exchanger vessels on white.

STJH-WATER-COOLED-CHILLER-1407KW

Water-Cooled Centrifugal Chiller 1407 kW

A mid-capacity water-cooled centrifugal chiller producing 1407 kW with a 5053 mm-long heat-exchanger frame.

1407 kW cooling output
60.49 l/s evaporator flow
5053 mm heat-exchanger length

Request a Quote Browse Products

Product Introduction

The 1407 kW selection lengthens the heat-exchanger package to 5053 mm and raises evaporator flow to 60.49 l/s. Its published 200.5 kW input suits larger pharmaceutical and electronics plants that have moved beyond the smallest centrifugal frame but do not require the 2110 kW machine.

Key Features

Mid-capacity plant fit

The machine fills the capacity gap between a medium building chiller and the largest campus-scale selection.

Longer heat-transfer surface

The extended frame accommodates the evaporator and condenser area required for the higher water flow.

Published power reference

A 200.5 kW input point supports electrical and energy planning at the stated cooling condition.

Technical Parameters

Cooling Capacity	1407 kW
Input Power	200.5 kW
Evaporator Flow	60.49 l/s
Dimensions	5053 x 2469 x 2852 mm
Compressor Type	Centrifugal
Evaporator	Shell-and-tube water circuit
Condenser	Water-cooled shell-and-tube circuit
Capacity Control	Modulating chiller control
Installation	Indoor central plant-room base
Customization	Water-box connections, electrical supply and control interface can be configured for the intended application and operating environment.

Applications

Larger pharmaceutical plants, electronics manufacturing, hospital campuses and clean production facilities with central cooling towers.

Solutions for Your Application

The 1055 kW frame leaves insufficient capacity for the calculated simultaneous load.Use the 1407 kW selection after applying the facility's staging and resilience allowance.

The longer chiller may restrict tube service within the plant room.Reserve the full 5053 mm equipment length plus the required heat-exchanger tube-removal clearance.

Available Options

Water-box orientation, pressure rating, electrical starter, isolation, heat recovery, flow instrumentation and plant-control communication are available.
