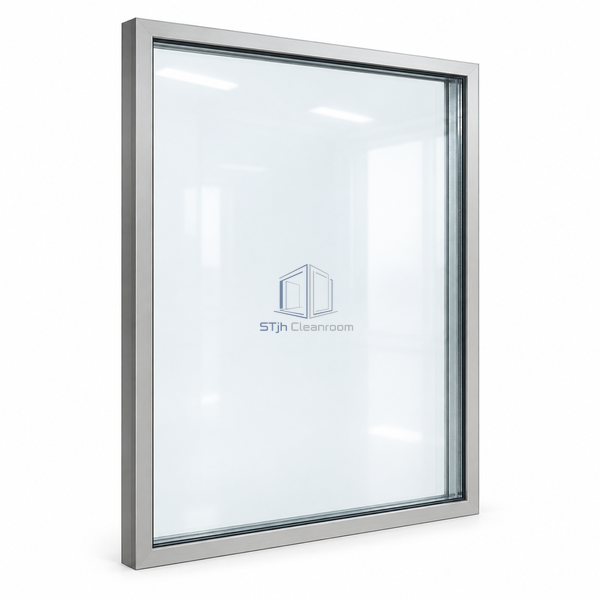

STjh 1000 x 1200 mm portrait cleanroom window on white, with clear double glazing and layered glass edges visible along the side.

STJH-TEMPERED-SAFETY-GLASS-CLEANROOM-WINDOW-1000X1200-8TL

Tempered Safety Glass Cleanroom Window 1000 x 1200 mm with Toughened Laminated

A portrait 1000 x 1200 mm viewing module with 8 mm toughened laminated glass.

Laminated construction adds an interlayer within the selected safety-glass build.
A 1200 mm height covers a taller equipment viewing field.
Clear glazing retains a natural view through the layered pane assembly.

Request a Quote Browse Products

Product Introduction

This taller observation panel selects the catalogue's toughened-and-laminated clear-glass build at a 1000 x 1200 mm footprint. The glazing combines heat-treated glass with a laminated construction rather than using a monolithic toughened pane alone. Both viewing faces form part of the double-glazed flush window system. The portrait format extends observation vertically, making it useful where operators need to see equipment at more than one working height through the same partition opening.

Key Features

Laminated construction adds an interlayer within the selected safety-glass build.
A 1200 mm height covers a taller equipment viewing field.
Clear glazing retains a natural view through the layered pane assembly.

Technical Parameters

Window Width	1000 mm
Window Height	1200 mm
Selected Glass Thickness	8 mm
Glass Treatment	Toughened
Glass Build	Laminated safety glass
Optical Finish	Clear
System Arrangement	Double glazed
Panel Orientation	Portrait
Mounting Family	Flush cleanroom glazing system
Customization	Wall interfaces and perimeter details can be adapted to the intended tall observation opening.

Applications

Viewing vertically arranged process equipment
Portrait observation openings beside laboratory work areas

Solutions for Your Application

The glazing specification calls for a laminated build in addition to toughening.

Select the 8 mm toughened-and-laminated clear-glass construction.

A square panel does not cover the full equipment height.

The 1200 mm-high portrait module extends the field of view upward and downward.

Available Options

Compatible joint-profile accessories
Wall-opening integration for the flush system

Planning a Tempered Safety Glass Cleanroom Window 1000 x 1200 mm with Toughened Laminated specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
