STJH-SEPARATOR-HEPA-H13-610X610X150

Separator HEPA Filter 610 × 610 × 150 mm H13

A six-inch full-module H13 separator filter for final filtration where bank depth is restricted.

150 mm shallow separator box
H13 final filtration
Standard and high-capacity duties

Request a Quote Browse Products

Product Introduction

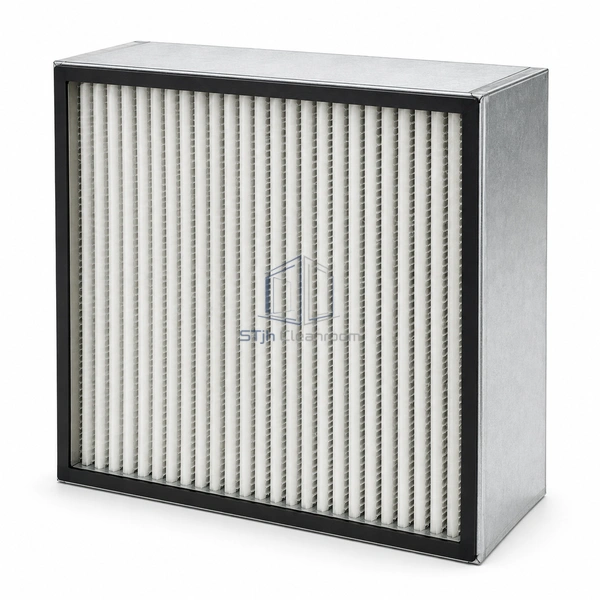

This 610 × 610 × 150 mm H13 filter uses microglass media folded around aluminum separators. In its standard configuration it delivers 1031 m3/h at a 250 Pa initial resistance; the documented high-capacity selection reaches 1626 m3/h at 350 Pa. Its six-inch box is intended for built-up banks and clean-process AHUs that cannot accept a full-depth separator pack.

Key Features

Depth-limited HEPA solution

The 150 mm cell provides a traditional separated pack in filter sections that lack room for a 290 mm box.

Two airflow selections

Standard and high-capacity duties allow pressure and airflow to be balanced within the same external size.

Aluminum-separated pleats

Corrugated separators maintain airflow passages through the microglass pack.

Technical Parameters

External Dimensions	610 × 610 × 150 mm
Efficiency Class	H13
Filter Medium	Microglass fiber
Pleat Separators	Aluminum
Standard Airflow	1031 m3/h
Standard Initial Resistance	250 Pa
High-Capacity Airflow	1626 m3/h
High-Capacity Initial Resistance	350 Pa
Housing Depth	150 mm six-inch class
Customization	Available based on the intended application and operating environment.

Applications

Used for final filtration in depth-constrained clean-process AHUs, built-up filter banks and controlled manufacturing supply systems. Airflow selection must match the available fan pressure and the expected loaded-filter operating point.

Solutions for Your Application

The HEPA bank has only six inches of available filter depth.The 150 mm separator cell fits the shallow section while retaining a full 610 mm face.

Higher airflow is required from the same opening but fan pressure is limited.Compare the 1031 m3/h at 250 Pa standard duty with the 1626 m3/h at 350 Pa high-capacity selection before sizing.

Available Options

Specify airflow duty, frame material, gasket location, faceguard and compatible clamping arrangement for the receiving bank.

Planning a Separator HEPA Filter 610 × 610 × 150 mm H13 specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
