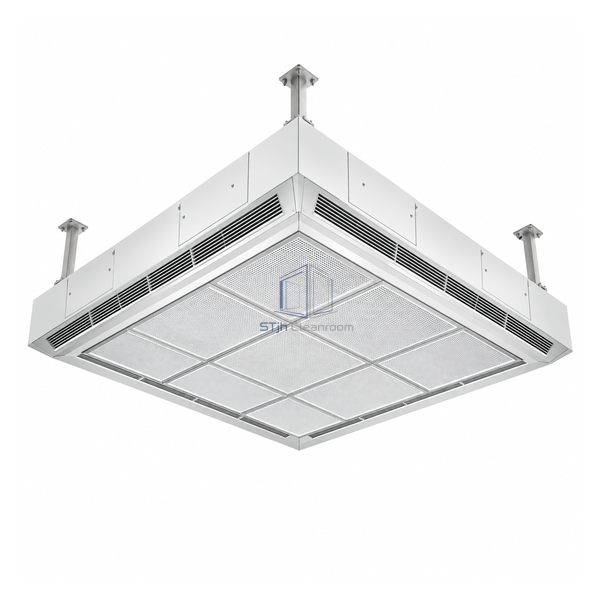

STjh large 3185 mm square operating-room laminar ceiling with broad H14 diffuser grid and recirculation slots

STJH-OPERATING-ROOM-LAMINAR-CEILING-3185

Operating Room Laminar Flow Ceiling 3185 × 3185 mm

A large square surgical ceiling designed to cover the operating table and sterile team with low-turbulence H14-filtered airflow.

3185 mm square protected field
9130 m³/h clean airflow
Coverage for table and sterile team

Request a Quote Browse Products

Product Introduction

With a 3185 x 3185 mm discharge field, this canopy extends protected airflow beyond the operating table to the working positions of the sterile team. The cited clean-air duty is 9130 m³/h with 6000 m³/h recirculation. Its square geometry is suited to general highly aseptic theatres that need more coverage than compact procedural rooms.

Key Features

Broader personnel coverage

The expanded square field can encompass the table, instrument area and sterile staff positions.

Balanced recirculation duty

The cited 6000 m³/h recirculation supports the total supply while limiting additional conditioned-air demand.

Modular ceiling integration

Filter and outlet sections can be coordinated around surgical lights and ceiling service penetrations.

Technical Parameters

Airflow Field	3185 x 3185 mm
Clean Airflow	9130 m³/h
Recirculation Airflow	6000 m³/h
Final Filter Class	H14
Flow Pattern	Low-turbulence vertical supply
Protected Area	Operating table and sterile team zone
Mounting	Flush ceiling integration
Room Type	General highly aseptic theatre
Controls	Interlocked with theatre HVAC operation
Customization	Available based on the intended application and operating environment.

Applications

For general highly aseptic operating theatres with a multi-person sterile zone. The canopy outline should be coordinated with instrument tables, imaging clearances and air-return placement.

Solutions for Your Application

A compact airflow field leaves sterile team members outside the protected zone.Extend coverage with the 3185 mm square discharge field.

Ceiling lights interrupt uniform air delivery over the table.Coordinate modular filter sections and sealed light interfaces during ceiling design.

Available Options

Select outlet membrane, filter-module zoning, integrated lighting details, recirculation path and monitoring points. Site dimensions and required velocities determine final configuration.

Planning a Operating Room Laminar Flow Ceiling 3185 × 3185 mm specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
