STJH-EXHAUST-HEPA-HOUSING-STANDARD

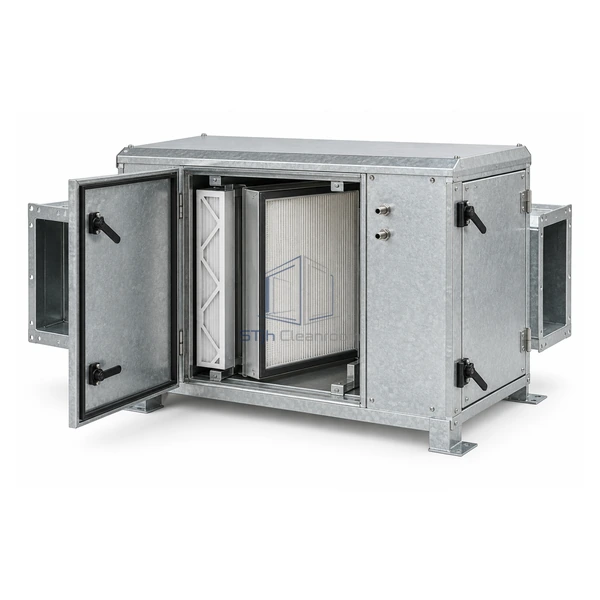

Exhaust HEPA Filter Housing Standard Side-Access

A dual-access gasket-seal cabinet for general laboratory and clean-process exhaust without contained BIBO changing.

Either-side service
14-gauge galvanized cabinet
Optional 2 in prefilter

Request a Quote Browse Products

Product Introduction

This standard exhaust housing uses a 14-gauge galvanized cabinet, gasket-seal HEPA track and access from either side. An optional nominal 2 in prefilter protects the final element, and the family pressure capability reaches plus or minus 8 in. w.g. Unlike the BIBO version, this model is intended for exhaust streams whose hazard assessment permits conventional side-door filter removal.

Key Features

General exhaust construction

The weather-resistant galvanized enclosure supports ducted final filtration without the added bagging system.

Flexible maintenance access

Doors on both sides allow filter withdrawal from the clear mechanical-room aisle.

Final-filter protection

A shallow prefilter option reduces coarse dust accumulation on the exhaust HEPA.

Technical Parameters

Housing Material	14-gauge galvanized steel
Access	Either side
Filter Type	Gasket-seal HEPA
Prefilter Track	2 in nominal optional
Family Pressure Capability	±8 in. w.g.
Change Method	Conventional side-door removal
Cabinet Duty	Weather-resistant exhaust housing
Filter Clamping	Mechanical gasket compression
Installation	Non-containment ducted exhaust
Customization	Available based on the intended application and operating environment.

Applications

For general laboratory, medical and clean-process exhaust systems where HEPA filtration is required but the risk assessment does not require a contained change bag.

Solutions for Your Application

A hazardous exhaust stream is assigned to a standard open-change cabinet.Complete the exposure assessment first and select the BIBO containment model whenever filter removal could release unacceptable contaminants.

Outdoor placement accelerates corrosion at cut edges and fasteners.Specify weather detailing, inspect coatings and joints, and choose stainless construction where the ambient environment is aggressive.

Available Options

Confirm hazard classification, cabinet material, HEPA depth, gasket side, prefilter, access side, weather protection, test ports and duct flanges.

Planning a Exhaust HEPA Filter Housing Standard Side-Access specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
