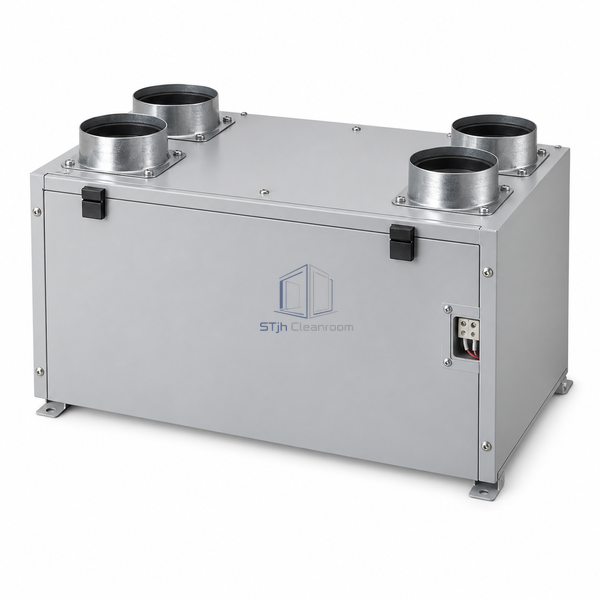

STjh 110 CFM energy recovery ventilator with a compact cabinet and four small duct ports on white.

STJH-ENERGY-RECOVERY-VENTILATOR-110CFM

Energy Recovery Ventilator 110 CFM

The smallest EV cabinet for balanced fresh-air ventilation in low-occupancy support rooms.

40-110 CFM airflow
Single static enthalpy core
Indoor any-orientation mounting

Request a Quote Browse Products

Product Introduction

This compact energy recovery ventilator covers 40-110 CFM with one static enthalpy core and small direct-drive fans. Indoor any-orientation installation and a low-voltage control circuit allow the cabinet to fit local support offices, laboratories and low-occupancy controlled rooms. The static core has no wheel drive, but filters, condensate conditions, air balance and exhaust-air suitability still require routine attention.

Key Features

Small balanced ventilation

The cabinet introduces outdoor air while exhausting a similar local room airflow.

No rotating recovery wheel

A fixed plate core transfers total energy without a belt or wheel motor.

Flexible indoor placement

The compact enclosure can be oriented to suit available service and duct routing.

Technical Parameters

Airflow Range	40-110 CFM
Installation	Indoor, any orientation
Recovery Core	One static enthalpy core
Fans	Compact direct drive
Controls	Low-voltage control circuit
Air Streams	Balanced outdoor and exhaust air
Recovery	Sensible and latent
Filtration	Supply and exhaust filters by selection
Primary Duty	Small support-room ventilation
Customization	Available based on the intended application and operating environment.

Applications

For small clean-support offices, laboratories and low-occupancy controlled rooms requiring local outdoor-air ventilation.

Solutions for Your Application

A small imbalance disrupts room pressure relative to the adjacent clean area.Measure both airstreams at the installed external pressure and trim fan or damper settings to the pressure plan.

An unsuitable exhaust contaminant crosses through the enthalpy core.Review exhaust compatibility and use a separated sensible-only recovery method where transfer risk is unacceptable.

Available Options

Confirm supply and exhaust duties, voltage, controls, filters, duct orientation, balancing, frost strategy, access and mounting.

Planning a Energy Recovery Ventilator 110 CFM specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
