A symmetrical receiver occupies the wrong side of the joint.
The F-shaped section concentrates its projecting arms on one side.

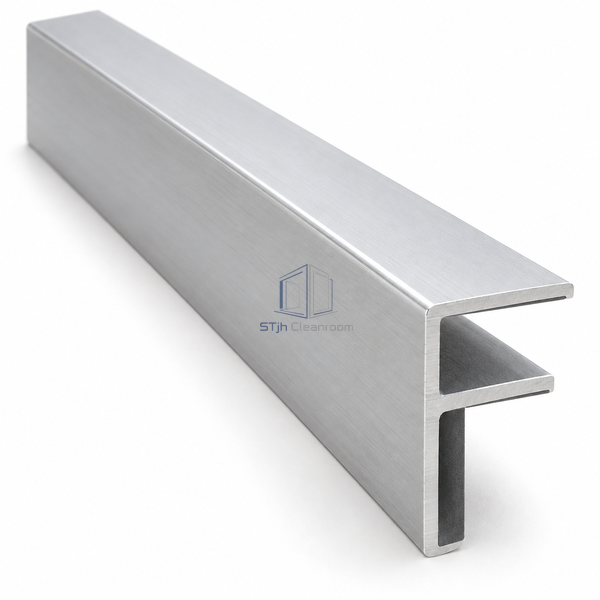

STJH-CLEANROOM-ALUMINUM-PROFILE-F45X35
Cleanroom Aluminum Extrusion Profile 45 x 35 mm F-Section
An asymmetric F-section aluminum extrusion for shaped cleanroom panel interfaces.
- The F outline places both arms on one side of the stem.
- A 45 x 35 mm envelope gives a substantial interface section.
- Aluminum extrusion produces clean, straight longitudinal edges.
Product Introduction
This 45 x 35 mm profile uses a main stem and two projecting arms to form an F outline. The unequal geometry provides an interface that differs from a double-sided H receiver, making section selection important when matching a panel return.
Key Features
- The F outline places both arms on one side of the stem.
- A 45 x 35 mm envelope gives a substantial interface section.
- Aluminum extrusion produces clean, straight longitudinal edges.
Technical Parameters
| Section Dimension A | 45 mm |
|---|---|
| Section Dimension B | 35 mm |
| Base Material | Aluminum |
| Cross-Section | F shape |
| Fabrication | Extruded |
| Arm Arrangement | Two arms on one side |
| Symmetry | Asymmetric |
| Supply Form | Linear section |
| Length Selection | Cut lengths available |
| Customization | Available based on the intended application and operating environment. |
Applications
- Cleanroom panel return interfaces
- Asymmetric modular trim connections
Solutions for Your Application
The profile must align along a straight panel edge.
The continuous extrusion creates a uniform longitudinal reference.
Available Options
- Required section lengths
- Surface finish selection
Planning a Cleanroom Aluminum Extrusion Profile 45 x 35 mm F-Section specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
