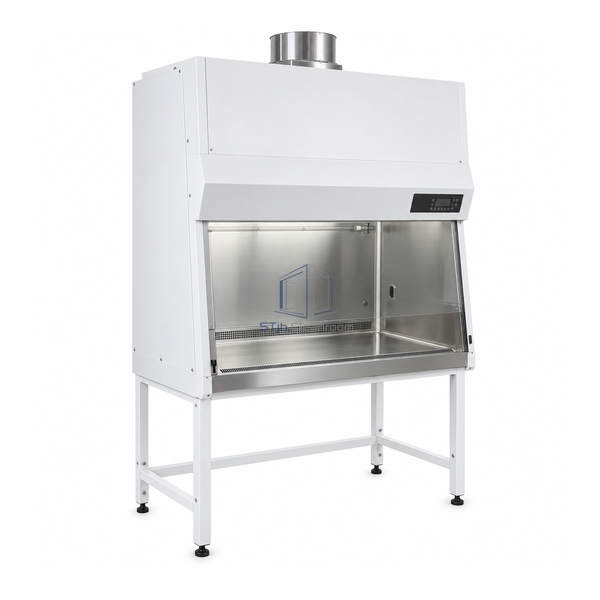

STjh 1200 mm Class II Type B2 cabinet with a round top exhaust collar and stainless steel work chamber

STJH-CLASS-II-TYPE-B2-BIOLOGICAL-SAFETY-CABINET-1200

Class II Type B2 Biological Safety Cabinet 1200 mm

A four-foot Class II Type B2 cabinet with a dedicated 254 mm exhaust connection and 100% facility exhaust.

100% total exhaust
254 mm exhaust connection
Four-foot enclosure

Request a Quote Browse Products

Product Introduction

This compact B2 model sends all cabinet air to the facility exhaust rather than recirculating it to the room. The 1379 mm exterior width provides a focused work zone for suitable volatile or hazardous procedures while limiting the footprint and exhaust demand relative to the six-foot unit.

Key Features

No room recirculation

All cabinet airflow leaves through the hard-duct exhaust route.

Defined duct interface

A dedicated 254 mm connection supports facility system planning.

Compact B2 footprint

The four-foot format suits focused processes that do not need the 1800 mm work width.

Technical Parameters

Exterior Dimensions	1379 x 803 x 1816 mm
Cabinet Class	Class II Type B2
Exhaust Architecture	100% total exhaust
Exhaust Connection	254 mm
Inflow Velocity	Approximately 0.53 m/s
Downflow Velocity	Approximately 0.28 m/s
Facility Connection	Hard duct
Work-Zone Use	Focused volatile or hazardous process
Nominal Size	1200 mm / 4 ft
Customization	Duct transition, services and base can be configured for the facility exhaust and process.

Applications

Suitable biological work involving limited volatile chemicals or hazardous-drug processes requiring total cabinet exhaust.

Solutions for Your Application

Recirculated exhaust is inappropriate for the selected process.Use the Type B2 architecture and discharge all cabinet air through the facility duct.

The building system must maintain cabinet exhaust stability.Coordinate the 254 mm connection and airflow controls with the facility exhaust design.

Available Options

Duct transition, services, base stand and exhaust monitoring interface can be configured.

Planning a Class II Type B2 Biological Safety Cabinet 1200 mm specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.

Talk to Our Team
