Filled self-smoothing body
Conductive filler is dispersed through the epoxy mix so the wearing layer provides an even surface with integral static-control function.
STJH-STATIC-DISSIPATIVE-EPOXY-FLOORING-SL24
Static-Dissipative Epoxy Flooring 2–4 mm Self-Leveler
A smooth self-smoothing epoxy system using a 3 mm nominal build for controlled static dissipation.
- 3 mm nominal supported construction
- Copper tape beneath ESD primer
- Smooth static-dissipative wearing course
About This Product

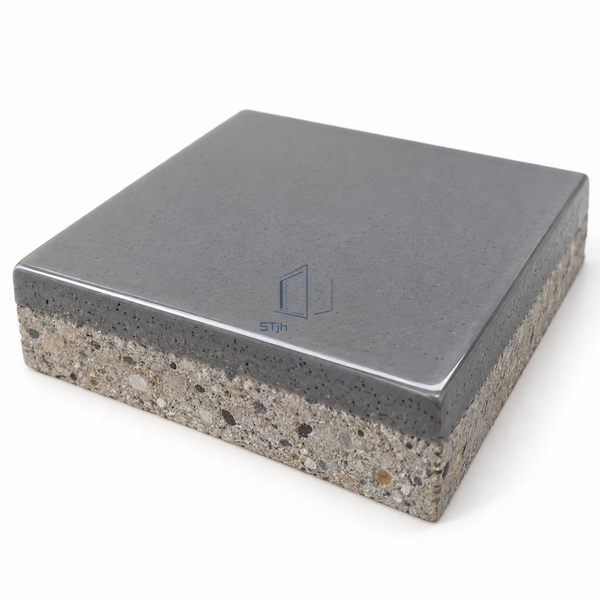

SL24 combines a primed concrete base, copper earthing tape, an ESD primer and a filled epoxy wearing layer at a nominal 3 mm build. Its smooth gloss face is intended for clean production where a static-dissipative floor is required. The floor is a coordinated resin system, with the conductive fillers and buried earthing components performing different roles. The mineral-filled wearing course supplies the continuous surface above the concealed grounding network.
Key Features
Planned earthing network
Copper tape connects the coated area to the designated ground path before the final layer makes those components inaccessible.
Cleanable exposed finish
The continuous gloss face avoids a granular broadcast texture, supporting precise equipment movement and routine residue removal.
Technical Parameters
| Binder | Epoxy resin with conductive fillers |
|---|---|
| Nominal Build | 3 mm |
| Primer Sequence | Base primer followed by ESD primer |
| Earthing Material | Copper tape |
| Wearing Course | Self-smoothing filled epoxy |
| Surface | Smooth gloss |
| Electrical Function | Static dissipative |
| Wearing-Layer Consumption | Approximately 6 kg/m² at 3 mm |
| Base | Sound prepared concrete |
| Customization | Available based on the intended application and operating environment. |
Applications
Consider SL24 for laboratories, electronics production and pharmaceutical processing support. The selected footwear and maintenance materials should suit the floor's static-control purpose. Avoid using the finish as a substitute for other necessary controls within a static-sensitive workstation.
Solutions for Your Application
The earthing layout might be missed before the floor is finished.
Install the copper tape and ESD primer as explicit stages before the self-smoothing layer.
A thin coating is inadequate for the desired smooth floor body.
Use the nominal 3 mm filled construction over a repaired and level base.
Available Options
Specify colour, cove interface and grounding points. Use compatible perimeter materials and transition details that maintain a continuous, cleanable junction with adjoining floor finishes.
Planning a Static-Dissipative Epoxy Flooring 2–4 mm Self-Leveler specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
