STJH-REINFORCED-WALK-ON-CLEANROOM-CEILING-PANEL-65-CRUCIFORM

Reinforced Walk-On Cleanroom Ceiling Panel 65 mm Cruciform-Jointed

Interlocked honeycomb deck with a dedicated overhead suspension path.

Interlocking edges keep adjoining decks aligned.
Honeycomb supports the metal skins across the panel.
Rod hardware permits suspended ceiling installation.

Request a Quote Browse Products

Product Introduction

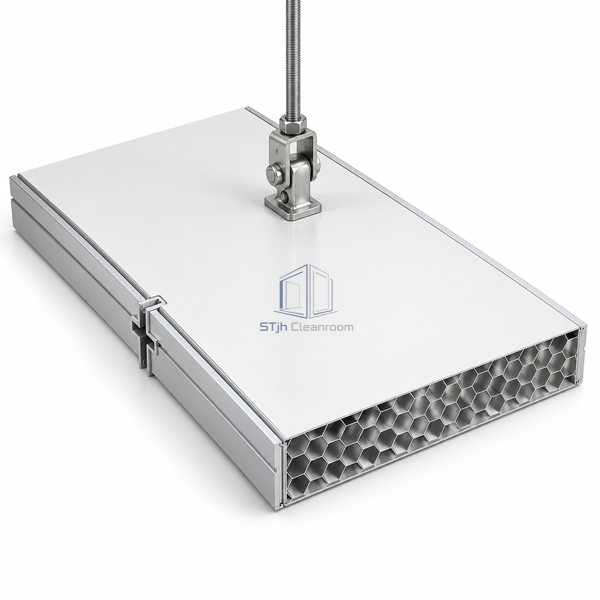

Coated steel skins bond to a four-edge aluminum frame. A cruciform connector engages neighboring panels, while a separate suspension profile transfers support through a clevis and threaded rod.

Key Features

Interlocking edges keep adjoining decks aligned.
Honeycomb supports the metal skins across the panel.
Rod hardware permits suspended ceiling installation.

Technical Parameters

Panel Thickness	65 mm
Facing Thickness	0.6 mm
Core	Aluminum honeycomb
Facing Material	Coated steel
Perimeter	Profiled aluminum frame
Panel Joint	Cruciform insertion profile
Suspension Rod	M10
Coupling	Clevis and clip
Span Options	2500 or 3000 mm
Customization	Available for the actual ceiling layout and operating environment.

Applications

Cleanroom maintenance decks
Overhead service enclosures

Solutions for Your Application

Panel joints must remain aligned under normal service access.

The inserted cruciform engages the profiled edges.

Support hardware must not protrude into the room.

The suspension profile connects above the clean face.

Available Options

Span-based panel lengths
Coated surface selection
