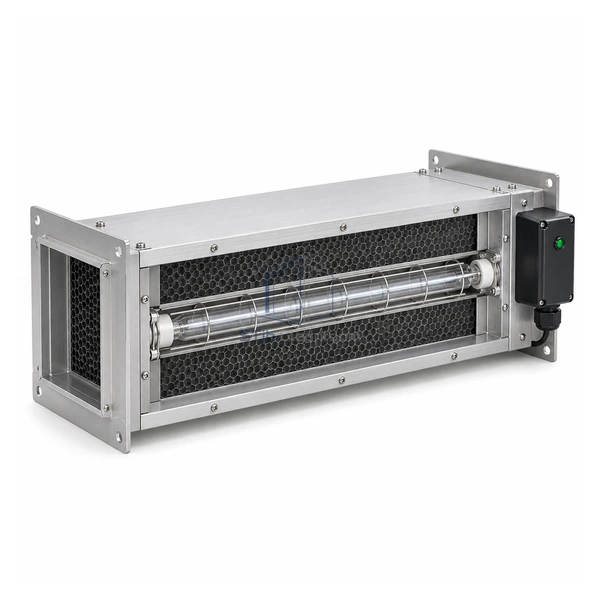

STJH-PCO-MODULE-18W-2600

Photocatalytic Oxidation Filter Module 18 W 2600 m3/h

A mid-size monitored photocatalytic module for medium duct branches and cleanroom support-air systems.

2600 m3/h medium duty
18 W UV-C source
371 mm active section

Request a Quote Browse Products

Product Introduction

This 18 W version extends the active section to 371 mm and raises the supported airflow to 2600 m3/h. It gives medium AHUs more treatment length than the compact 10 W model without the installation envelope of the 28 W unit. Airflow sensing, digital lamp-life indication and alarm ports support planned maintenance, while pollutant reduction remains dependent on the actual contaminant, contact conditions and a clean photocatalytic surface.

Key Features

Intermediate airflow capacity

The 2600 m3/h rating covers medium ductwork between the compact and high-volume configurations.

Longer reaction zone

A 371 mm section increases illuminated photocatalyst area compared with the 10 W module.

Control-ready package

Alarm and control terminals allow lamp and airflow status to be integrated with the air-system controls.

Technical Parameters

Electrical Power	18 W
Supply	220-240 V, 50/60 Hz
Rated Current	0.095 A
Overall Dimensions	250 x 157 x 443 mm
Treatment Section Length	371 mm
Maximum Airflow	2600 m3/h
Ingress Protection	IP20
Treatment Method	UV-C activated TiO2 photocatalysis
Controls	Airflow sensor, digital life display and alarm ports
Customization	Available based on the intended application and operating environment.

Applications

Suited to medium cleanroom make-up or recirculation branches, commercial AHUs and controlled-process ventilation requiring a monitored PCO stage.

Solutions for Your Application

The PCO section is installed where maintenance access to the lamp is blocked.Reserve the full withdrawal envelope and place an isolated service opening beside the 371 mm treatment section.

Dust accumulation masks the catalyst and reduces treatment performance.Use effective upstream particle filtration and include catalyst and lamp cleaning in the planned maintenance routine.

Available Options

Select mounting orientation, duct penetration, control wiring, alarm logic, upstream filter grade and service interval for the actual air stream.
