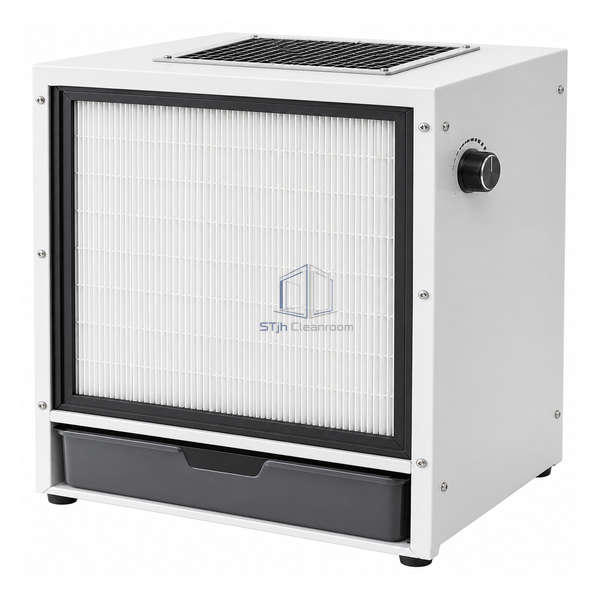

STjh short 16 by 24 inch reverse-flow HEPA unit with room-side intake and dust collector pan

STJH-NEGATIVE-PRESSURE-HEPA-UNIT-16X24

Negative-Pressure HEPA Filtration Unit 16 × 24 in

A narrow 16 x 24 in reverse-flow HEPA module for compact negative-pressure exhaust points.

16 x 24 in narrow footprint
2.2 ft² active filter face
Room-side service with dust pan

Request a Quote Browse Products

Product Introduction

The shortest narrow reverse-flow unit uses a 15.7 x 23.63 in footprint and a 16.125 in height. Air is drawn from the controlled space through a MERV 7 prefilter and 99.99% HEPA stage, while a dust collector pan supports room-side service. Its 2.2 ft² active face is tailored to small isolation or maintenance enclosures.

Key Features

Compact exhaust pickup

The short chassis fits negative-pressure ceiling positions where a conventional 2 x 2 ft unit is too wide.

Contained room-side maintenance

The collector pan and room-side access reduce reliance on an overhead service space.

Adjustable reverse flow

A variable-speed 1/4 hp PSC assembly allows the exhaust contribution to be balanced.

Technical Parameters

Product Dimensions	15.7 W x 23.63 D x 16.125 H in
Active Filter Face	2.2 ft²
Airflow Direction	Reverse-flow negative pressure
Final Filter	HEPA, 99.99% at 0.3 µm
Prefilter	MERV 7
Motor and Blower	1/4 hp PSC, backward-curved
Electrical	120 V, 0.9 A, 105 W, single phase, 50/60 Hz
Housing	Powder-coated steel with aluminium filter frame
Filter Access	Room-side with dust collector pan
Customization	Available based on the intended application and operating environment.

Applications

Designed for compact isolation rooms, cleanroom renovation enclosures and localized equipment-repair containment. The 16 in width is particularly useful between congested ceiling services.

Solutions for Your Application

A standard exhaust module cannot fit the narrow ceiling opening.Use the 15.7 in wide cabinet and keep the room-side filter face accessible.

Dust may fall during filter service.Retain the integral collection pan and follow a controlled room-side removal sequence.

Available Options

Choose ceiling frame, duct adapter, filter alarm, suspension hardware and control panel. Balance the variable-speed exhaust against replacement air.

Planning a Negative-Pressure HEPA Filtration Unit 16 × 24 in specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
