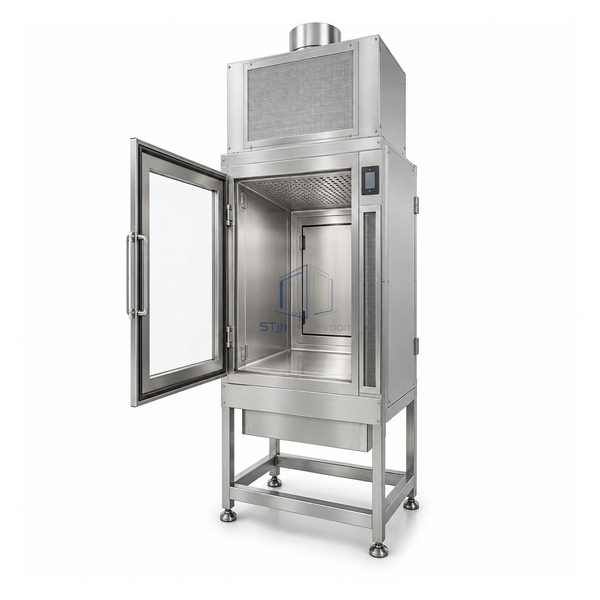

STjh compact 500 mm active material airlock with stainless body, H14 top plenum and vertical-flow diffuser

STJH-MATERIAL-AIRLOCK-500-ACTIVE

Active Cleanroom Material Airlock 500 mm

A compact self-ventilated material lock for small sealed components crossing adjacent clean zones.

500 mm cubic interior
Integral blower and H14 HEPA
Autonomous vertical displacement flow

Request a Quote Browse Products

Product Introduction

The smallest active model provides a 500 mm cubic transfer space within a 700 x 575 x 1000 mm body. Its own blower and H14 HEPA filter create autonomous vertical low-turbulence displacement airflow, independent of the room duct system. A stainless housing, base and installation frame support wall integration where small tools or containers need an actively swept transfer chamber.

Key Features

Compact active protection

The 500 mm chamber adds filtered purge capability without the footprint of the larger material-lock models.

Independent air supply

An integral blower lets the chamber operate without supply and exhaust connections to the central cleanroom HVAC.

Hygienic wall integration

A V2A stainless housing, base and installation frame provide cleanable surfaces around the transfer opening.

Technical Parameters

Internal Dimensions	500 W x 500 D x 500 H mm
External Dimensions	700 W x 575 D x 1000 H mm
Housing Material	V2A stainless steel 1.4301
Final Filter	H14 HEPA
Airflow	Vertical low-turbulence displacement flow
Blower	Integral autonomous fan
Door Operation	One-door-at-a-time interlock
Installation	Wall-integrated with base and frame
Typical Load	Small containers, tools and components
Customization	Available based on the intended application and operating environment.

Applications

For small containers, tools and sealed component packs transferred between pharmaceutical or medical-device clean zones. The surrounding room classifications and pressure cascade determine the operating cleanliness achieved by the chamber.

Solutions for Your Application

A passive hatch does not actively sweep particles from the load space.Use the integral blower and H14 filter to establish vertical displacement airflow during the transfer cycle.

Central duct connections are unavailable at the selected wall.Choose the autonomous active model, which does not depend on the room ventilation branch.

Available Options

Available options include corner door positioning, horizontal flow, trolley arrangement, wall console and emergency stop. Dimensions and control timing can be adapted to the load and partition.

Planning a Active Cleanroom Material Airlock 500 mm specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
