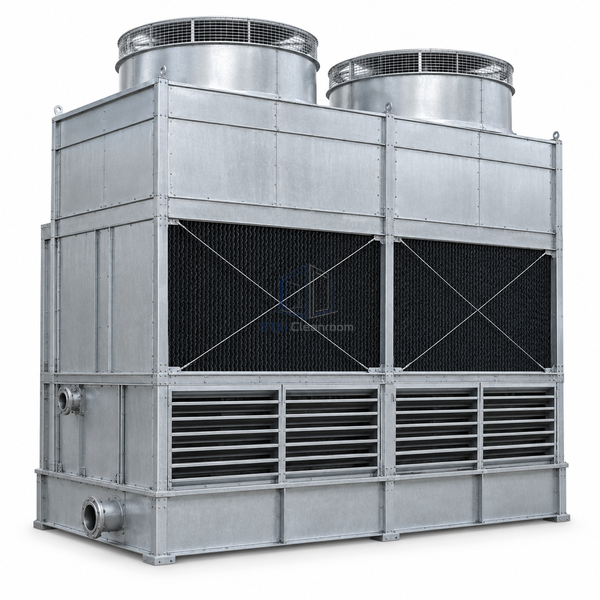

STjh 723-ton tall double-cell cooling tower with a deeper louvered thermal section and twin top fans on white.

STJH-INDUCED-DRAFT-COOLING-TOWER-723TON

Induced-Draft Counterflow Cooling Tower 723-Ton Tall Double-Cell

A tall 723-ton double-cell counterflow tower with an 11 ft 2 in thermal section and 183860 CFM induced airflow.

723 nominal tons
11 ft 2 in tower height
183860 CFM induced airflow

Request a Quote Browse Products

Product Introduction

The tallest selected double-cell frame increases thermal depth to 11 ft 2 in while retaining the same plan footprint. Its 40 hp fan system moves 183860 CFM, producing a 723-ton rating for large process chiller plants.

Key Features

Deeper thermal section

The taller fill and air path increase heat-transfer opportunity beyond the two lower-height variants.

Highest selected tower airflow

The 183860 CFM fan duty supports the maximum nominal rating in this footprint family.

Large two-cell configuration

Two cells retain staging and service flexibility for a high-capacity condenser-water plant.

Technical Parameters

Nominal Tonnage	723 tons
Cell Quantity	2
Fan Motor Selection	40 hp class
Fan Airflow	183860 CFM
Dimensions	17 ft 3 in x 18 ft 1 in x 11 ft 2 in
Tower Type	Induced-draft counterflow
Thermal Section	Deep high-capacity fill section
Water Circuit	Open evaporative condenser water
Installation	Outdoor engineered support
Customization	Fan package, materials and water-management accessories can be configured for the intended application and operating environment.

Applications

Large clean-manufacturing process chiller plants, campus condenser-water systems and high-capacity central utilities.

Solutions for Your Application

The required tower duty exceeds the lower-height options within the available plan area.Use the 11 ft 2 in thermal section and verify the 723-ton selection at actual design temperatures.

The taller tower increases wind, structure and maintenance-access considerations.Design anchorage, support, ladders and guardrails around the complete operating and environmental loads.

Available Options

Structural upgrades, access platform, low-sound fan, VFDs, basin heaters, stainless components, drift control and water-management package can be selected.
