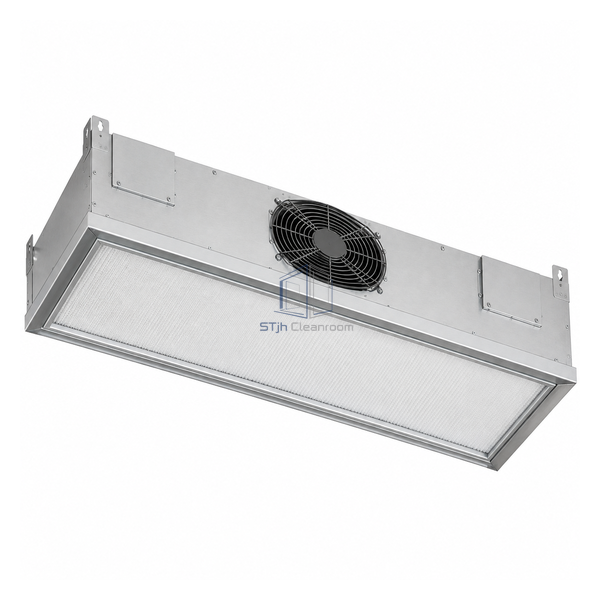

STjh slim 575 by 1175 mm equipment FFU with shallow cabinet, single EC fan and H14 filter face

STJH-EQUIPMENT-FAN-FILTER-UNIT-2X4

Equipment Fan Filter Unit 2 × 4 ft

A slim, high-pressure equipment FFU for stockers, narrow tools and compact mini-environments.

575 x 1175 mm footprint
360 Pa static pressure
H14 filter, 50 mm deep

Request a Quote Browse Products

Product Introduction

This 2 x 4 equipment fan filter unit uses a 575 x 1175 mm footprint and a slim 110 + 35 mm cabinet arrangement. It provides the highest listed static pressure in the three-model EFU group at 360 Pa, while retaining the lowest 60-95 W power band. A 50 mm H14 filter supports direct integration into semiconductor stockers and narrow tool enclosures.

Key Features

Slim tool-top package

The low cabinet profile limits intrusion into compact equipment and mini-environment service zones.

Pressure-priority duty

The 360 Pa value gives this size the greatest resistance capability in the accepted EFU group.

Low power band

A listed 60-95 W range supports efficient localized clean-air supply.

Technical Parameters

Nominal Format	2 x 4
Footprint	575 x 1175 mm
Cabinet Height	110 + 35 mm
Static Pressure	360 Pa
Power Input	60-95 W
Sound Level	44-48 dBA
Final Filter	H14, 50 mm
Installation	Equipment-roof or mini-environment mounting
Airflow Direction	Filtered supply into the tool enclosure
Customization	Available based on the intended application and operating environment.

Applications

Designed for semiconductor stockers, compact tool enclosures and narrow mini-environments that need pressure reserve in a shallow package. Final duty should be confirmed against tool resistance and leakage.

Solutions for Your Application

The equipment roof cannot accept a conventional deep FFU.Use the slim 110 + 35 mm cabinet arrangement over the 575 x 1175 mm opening.

Tool resistance reduces airflow from a standard low-pressure module.Select the 360 Pa EFU and commission it against the complete enclosure pressure loss.

Available Options

Confirm electrical supply, speed control, H14 seal, equipment opening and service direction. The final fan setting should reflect actual tool resistance.

Planning a Equipment Fan Filter Unit 2 × 4 ft specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
