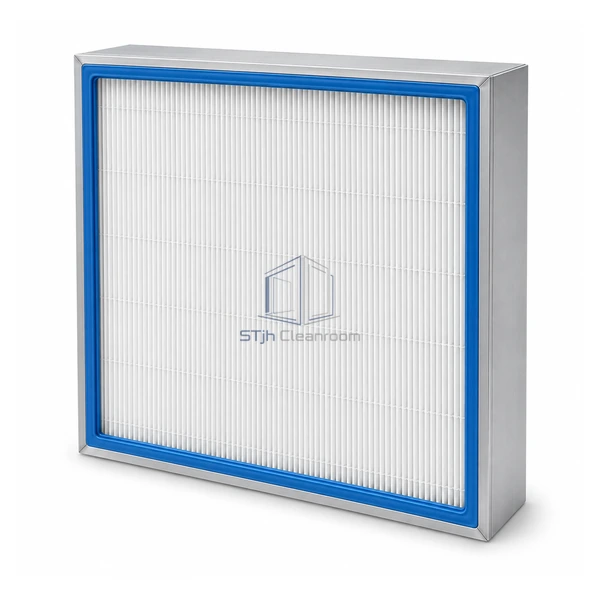

STjh H14 ePTFE HEPA filter with blue gel seal main view

STJH-EPTFE-HEPA-H14-GEL

ePTFE Membrane HEPA Filter H14 Gel-Seal

A robust H14 membrane panel with a filter-mounted gel trough for aseptic bottom-load terminals.

Filter-mounted gel trough
H14 supported membrane
Bottom-load terminal interface

Request a Quote Browse Products

Product Introduction

The gel-seal ePTFE model places a continuous fluid channel in the anodized aluminum perimeter. A housing knife edge enters the gel when the panel is raised into a bottom-load terminal, while the supported membrane provides H14 efficiency, low outgassing and high tensile strength. This arrangement is distinct from the gasket model because sealing depends on knife-edge immersion rather than clamp compression.

Key Features

Low-bypass fluid path

The continuous gel channel conforms around the mating knife edge and can reveal discontinuities through its impression.

Maintenance-tolerant media

Supported ePTFE reduces the risk of incidental handling damage during room-side replacement.

Aseptic service geometry

The bottom-load format allows filter changeout without opening a common plenum above the room.

Technical Parameters

HEPA Class	H14 / at least 99.995% at MPPS
Filter Medium	Supported ePTFE membrane
Perimeter Frame	Anodized aluminum
Seal Configuration	Integral low-outgassing gel channel
Mating Component	Knife edge on terminal housing
Media Characteristics	Low pressure drop and high tensile strength
Environmental Property	Hydrophobic membrane surface
Access Mode	Room-side or bottom-load replacement
Service Check	Inspect gel surface and knife-edge impression
Customization	Available based on the intended application and operating environment.

Applications

Selected for aseptic pharmaceutical terminals, biotechnology rooms and controlled filling areas with a housing knife edge and room-side access. It is useful when a fluid seal and durable membrane media are both required, provided gel chemistry is compatible with the sanitation program.

Solutions for Your Application

Filter replacement above an aseptic room would disturb inaccessible plenum services.The gel-channel panel supports bottom-load changeout from the controlled room when paired with a compatible terminal.

Old gel residue prevents complete knife-edge immersion.Remove approved residue from the housing edge, inspect the new channel and insert the filter vertically without dragging.

Available Options

Choose gel material, channel dimensions, exact frame size, upstream screen and room-side retaining hardware for the terminal.

Planning a ePTFE Membrane HEPA Filter H14 Gel-Seal specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
