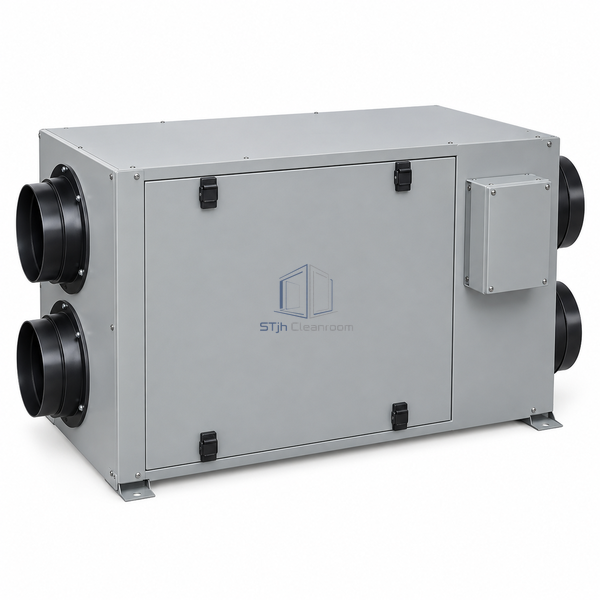

STjh 200 CFM energy recovery ventilator with a large static-core cabinet and expanded fan compartments on white.

STJH-ENERGY-RECOVERY-VENTILATOR-200CFM

Energy Recovery Ventilator 200 CFM

The largest EV cabinet in the selected range for suites, factory offices and conference areas.

100-200 CFM range
L-100-G5-class static core
24 VAC transformer and relay controls

Request a Quote Browse Products

Product Introduction

This model delivers 100-200 CFM and uses the larger L-100-G5-class static plate core and cabinet. A 24 VAC transformer and relay package supports integration with room ventilation controls rather than a simple line-cord-only arrangement. It serves larger clean-support suites and conference areas, while supply and exhaust must be balanced against actual duct resistance to protect surrounding pressure relationships.

Key Features

Largest selected EV airflow

The expanded cabinet serves suites and occupied areas beyond the two smaller local units.

Static plate recovery

The fixed core transfers total energy without rotating wheel maintenance.

Control-system interface

A transformer and relay package supports remote enable and coordinated ventilation operation.

Technical Parameters

Airflow Range	100-200 CFM
Installation	Indoor, any orientation
Recovery Core	L-100-G5-class static plate
Controls	24 VAC transformer and relay package
Fans	Direct-drive supply and exhaust
Air Streams	Balanced outdoor and return exhaust
Recovery	Sensible and latent
Filtration	Replaceable airstream filters
Primary Duty	Large support-suite ventilation
Customization	Available based on the intended application and operating environment.

Applications

For larger clean-support suites, factory offices, conference rooms and low-risk controlled spaces requiring up to 200 CFM ventilation.

Solutions for Your Application

A 200 CFM exhaust offset disturbs the adjacent cleanroom pressure cascade.Coordinate ERV supply and exhaust setpoints with the building air-balance schedule and room-pressure controls.

Frost restricts the static core during cold outdoor conditions.Apply the selected defrost or intermittent control strategy and verify condensate management for the installation orientation.

Available Options

Confirm airflow, external pressure, core suitability, voltage, 24 VAC controls, filters, frost strategy, balancing, mounting and service access.

Planning a Energy Recovery Ventilator 200 CFM specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
