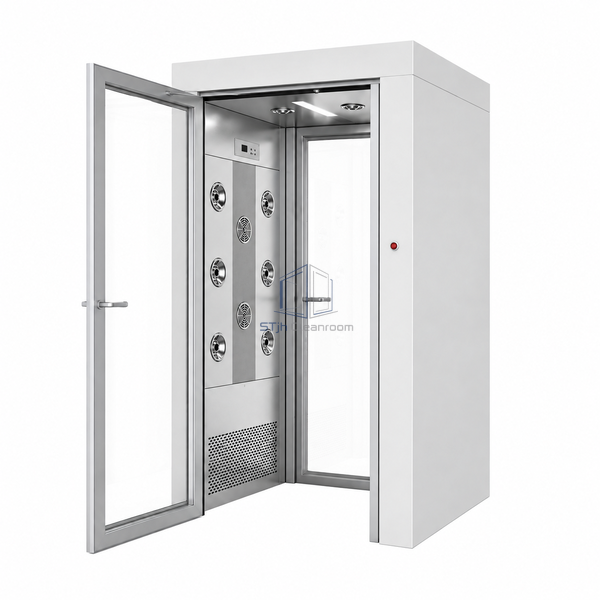

STjh floorless single-person air shower with an open aluminum-framed glass door, eight visible side jets and two ceiling nozzles

STJH-DOUBLE-SIDED-SINGLE-PERSON-AIR-SHOWER-FLOORLESS

Single-Person Cleanroom Air Shower Double-Sided Floorless

A flush-entry, floorless one-person chamber with bilateral wall jets and ceiling nozzles.

No integral floor
18 wall and ceiling nozzles
770 mm clear width

Request a Quote Browse Products

Product Introduction

This 1100 x 1000 x 2100 mm chamber uses the facility's finished floor rather than an integral base. Its 770 x 1000 x 1935 mm passage is treated by 18 nozzles across both side walls and the ceiling. The floorless threshold is the defining installation difference within the three double-sided single-person variants.

Key Features

Flush personnel threshold

The facility floor continues through the air shower, avoiding a raised step at either door.

Three-direction coverage

Eight nozzles on each wall and two overhead jets surround a single gowned operator.

Interlocked transition

The two-door sequence separates the non-clean and clean sides during the shower cycle.

Technical Parameters

External Dimensions	1100 x 1000 x 2100 mm
Clear Passage	770 x 1000 x 1935 mm
Occupancy	One person
Nozzle Count	18
Nozzle Distribution	8 per side wall plus 2 ceiling
Floor	None; facility finished floor continues through
Doors	Manual aluminium doors
Interlock	Two-door interlock
Power Supply	AC 200 V, three phase, 50/60 Hz
Customization	Available based on the intended application and operating environment.

Applications

For new cleanroom construction with a continuous finished floor, wheeled-access preference or strict trip-hazard control. The floor interface must be sealed and remain cleanable through the chamber.

Solutions for Your Application

An integral base would create an unwanted step in the personnel route.Install the floorless cabinet over the completed level floor and seal its perimeter.

One-sided jets leave the far side of garments untreated.Use the bilateral eight-plus-eight wall pattern with two additional ceiling nozzles.

Available Options

Confirm door handing, finished-floor seal, controls, timer, lighting and access integration. The surrounding floor must support cleaning beneath both thresholds.

Planning a Single-Person Cleanroom Air Shower Double-Sided Floorless specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
