STJH-CLEANROOM-SERVICE-CHASE-WALL-PANEL-CAVITY

Cleanroom Service Chase Wall Panel Full-Height Cavity

Full-height cavity wall for distributed process services.

Cavity depth can accommodate larger services.
Independent liner panels allow localized removal.
Flush finish covers the supporting stud structure.

Request a Quote Browse Products

Product Introduction

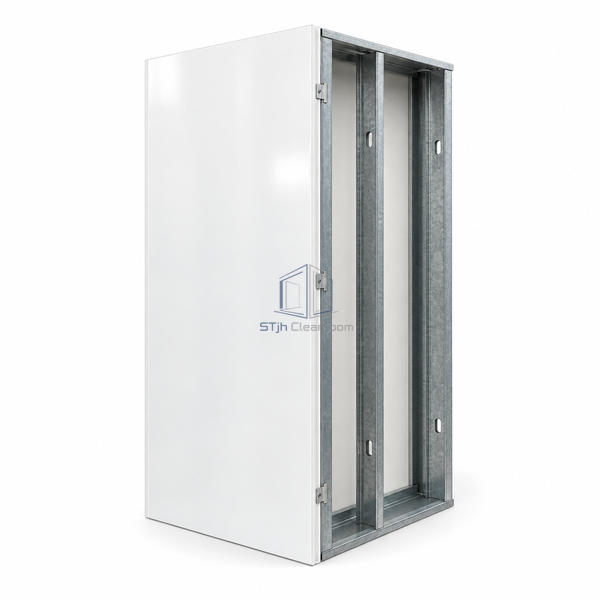

Metal studs support removable thin cleanroom lining panels on Z-clips. Selecting the stud depth creates a continuous chase for pipework and electrical routes without constructing two separate freestanding walls.

Key Features

Cavity depth can accommodate larger services.
Independent liner panels allow localized removal.
Flush finish covers the supporting stud structure.

Technical Parameters

Liner Thickness	12.7 mm
Support	Metal stud framework
Liner Attachment	Z-clips
Cavity Options	92.1, 152.4, 304.8 or 457.2 mm
Facing	Smooth uPVC finish
Joint	Welded or sealed panel seam
Access	Removable lining panels
Utilities	Mechanical, electrical and process piping
Wall Format	Full-height cavity construction
Customization	Available for the intended service depth and enclosure layout.

Applications

Process piping chases
Cleanroom utility corridors

Solutions for Your Application

Large pipes do not fit inside a thin sandwich partition.

Deeper studs provide a wider continuous service cavity.

A concealed valve needs future replacement.

The Z-clip lining can be removed locally for access.

Available Options

Alternative liner finishes
Integrated service openings
