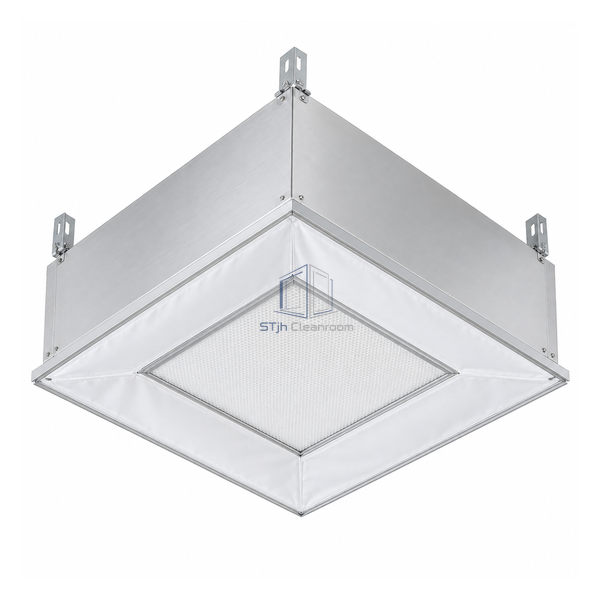

STjh compact 1355 mm clean-ward supply ceiling with H14 field and polyester cloth diffuser outlet

STJH-CLEAN-WARD-SUPPLY-CEILING-1355X1355

Clean Ward Supply Ceiling 1355 × 1355 mm

A compact H14-filtered ceiling outlet for localized clean-air protection above one patient or treatment position.

1355 x 1355 mm compact field
1660 m³/h design airflow
Polyester-cloth air outlet

Request a Quote Browse Products

Product Introduction

The 1355 mm square ward ceiling supplies a cited 1660 m³/h through a polyester-cloth outlet, creating a localized low-turbulence air zone over one bed or treatment position. Its compact footprint minimizes interference with luminaires, medical rails and ceiling services. The model is intended for targeted patient protection rather than full-room unidirectional coverage.

Key Features

Single-position protection

The compact field concentrates clean supply air over one patient or clinical work location.

Soft air distribution

A polyester-cloth outlet spreads the H14-filtered air with low turbulence at the occupied zone.

Service-friendly footprint

The smaller square leaves more ceiling area for lights, rails and medical utilities.

Technical Parameters

Outlet Field	1355 x 1355 mm
Clean Airflow	1660 m³/h
Final Filter Class	H14
Outlet Material	Polyester cloth
Flow Character	Low-turbulence downward supply
Coverage	One patient or treatment position
Installation	Ceiling integrated
Plenum Construction	Project-selected cleanroom material
Airflow Control	Matched to ward pressure and ventilation plan
Customization	Available based on the intended application and operating environment.

Applications

For a single protective-environment bed, isolation-room care point or clinical treatment station needing localized H14-filtered supply air.

Solutions for Your Application

Treating the entire room to the same cleanliness level uses unnecessary airflow.Concentrate the 1355 mm clean-air field above the occupied care position.

A rigid high-velocity outlet creates drafts around the patient.Use the polyester distribution cloth to deliver a broad low-turbulence downward flow.

Available Options

Configure plenum material, filter access, suspension, outlet cloth, airflow monitoring and ceiling-service coordination. Final duty is balanced with room pressure requirements.

Planning a Clean Ward Supply Ceiling 1355 × 1355 mm specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
