STJH-WALL-MOUNTED-AIR-PURIFIER-400CFM-UV

Wall-Mounted HEPA Air Purifier 400 CFM UV-C

A wide low-profile wall purifier combining two-stage HEPA filtration with two internal UV-C lamps.

400-450 CFM clean airflow
Two 36 W UV-C lamps
Wall or ceiling mounting

Request a Quote Browse Products

Product Introduction

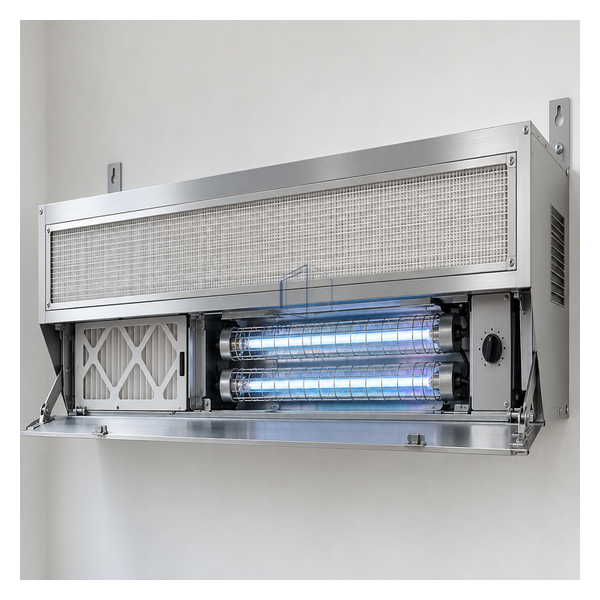

This 40 in wide anodized-aluminium purifier mounts on a wall or ceiling to preserve floor area. It delivers 400-450 CFM through a MERV 8 prefilter and HEPA final stage, with two ozone-free 36 W UV-C lamps inside the recirculating cabinet. Front-panel filter access and standard 120 V input suit smaller preparation and support rooms.

Key Features

Floor-space-free installation

The 16 x 40 x 15 in housing mounts above occupied surfaces rather than using a mobile base.

Internal UV-C treatment

Two ozone-free lamps operate within the filter cabinet instead of exposing the room directly.

Front filter access

The MERV 8 and HEPA stages can be reached from the room side of the installed purifier.

Technical Parameters

External Dimensions	40 W x 15 D x 16 H in
Clean Airflow	400-450 CFM
Housing	16-gauge anodized aluminium
Prefilter	MERV 8 disposable pleated filter
Final Filter	HEPA; ULPA optional
UV-C Lamps	2 x 36 W, ozone-free
Power Supply	120 V AC, 50/60 Hz, 1.8 A
Impeller Fan	225 W
Mounting	Wall or ceiling
Customization	Available based on the intended application and operating environment.

Applications

Suitable for pharmacy support rooms, gowning areas, dental or healthcare preparation rooms and small controlled spaces with limited floor area. UV-C lamp access and replacement intervals should be incorporated into maintenance planning.

Solutions for Your Application

A mobile purifier obstructs an already crowded floor.Mount the 15 in deep cabinet on a suitable wall or ceiling while retaining front service clearance.

Operators need particle filtration and an internal irradiation stage in one unit.Use the MERV 8/HEPA train with the two enclosed ozone-free UV-C lamps.

Available Options

Available choices include ULPA filtration, 304 or 316L stainless construction, inlet or outlet duct collar, 220 V fan and illuminated filter-change indication.
