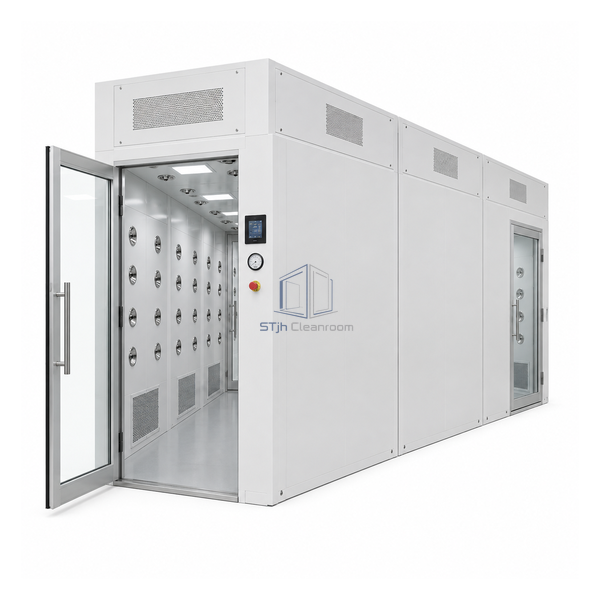

Cleanroom Air Shower Tunnel Three-Section Walk-Through

A medium-length three-module air shower tunnel with 102 adjustable jets and three filtered blower sections.

4115 mm tunnel depth
Three blower and HEPA modules
102 total adjustable nozzles

Request a Quote Browse Products

Product Introduction

The three-section tunnel extends the standard-profile path to 4115 mm. Three 5 hp blower and HEPA modules serve 96 wall nozzles and six ceiling jets, adding one complete cleaning section beyond the compact model. This geometry supports a longer exposure path and moderate pedestrian throughput without reaching the four-section footprint.

Key Features

Extended exposure distance

A third 54 in section lengthens the active path for personnel moving at a controlled pace.

Sectional serviceability

Each module has its own blower, HEPA stage and access panels for a clearly divided air system.

Expanded jet field

Ninety-six wall and six ceiling nozzles distribute air along the full 4.1 m enclosure.

Technical Parameters

External Dimensions	1264 W x 4115 D x 2946 H mm
Tunnel Sections	3
Nominal Section Depth	54 in
Motors	3 x 5 hp, three phase
HEPA Stages	3
Wall Jets	96
Overhead Jets	6
Air Delivery per Section	Approximately 1900 CFM
User Interface	Touchscreen microprocessor control
Customization	Available based on the intended application and operating environment.

Applications

Designed for medium-throughput pedestrian entrances, batch gown cleaning and research or manufacturing facilities needing a longer transition. The added centre module allows more exposure at the same walking speed.

Solutions for Your Application

Two sections provide too little travel time for the entry protocol.Add the third active module to extend the high-velocity cleaning path by 54 in.

A long integrated air system would be difficult to service.Use the sectional arrangement with separate blower, filter and access components for each module.

Available Options

Select shell material, lighting, interlocks, HMI timing, door configuration and optional 90-degree section placement. Wider modules can be engineered where the traffic path requires them.

Planning a Cleanroom Air Shower Tunnel Three-Section Walk-Through specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
