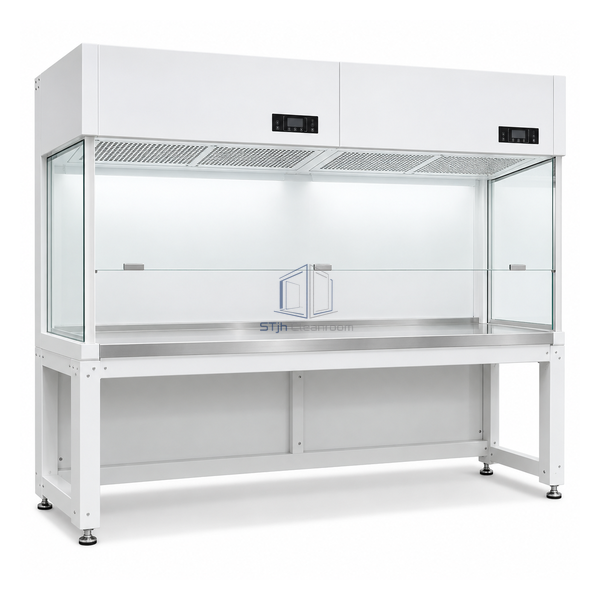

STjh extra-wide 6 foot vertical clean bench with two-section HEPA housing and dual-position work zone

STJH-VERTICAL-CLEAN-BENCH-6FT

Vertical Laminar Flow Clean Bench 6 ft

A wide vertical clean bench for large equipment layouts and coordinated non-hazardous assembly work.

6 ft extended work zone
Large-instrument capacity
Vertical ISO Class 5 downflow

Request a Quote Browse Products

Product Introduction

This 6 ft model extends the protected work surface for long assemblies, multiple instruments or two coordinated task positions. It retains the vertical 45-65 fpm HEPA-filtered downflow and tempered-glass enclosure of the smaller series. The broad front opening demands careful loading so large equipment does not create stagnant areas or divide the downflow over critical components.

Key Features

Extended process layout

The six-foot surface accommodates long assemblies or multiple fixtures without crowding the critical zone.

Coordinated work positions

The wider opening can support two defined stations when procedures prevent cross-traffic between operators.

Product protection across width

A full-width diffuser distributes HEPA-filtered downflow above the work area.

Technical Parameters

Nominal Width	6 ft
Airflow Direction	Vertical downflow
Downflow Velocity	45-65 fpm
Final Filter	HEPA, 99.99% at 0.3 µm
Work-Zone Condition	ISO Class 5
Sash Opening	9.4 in nominal
Construction	Powder-coated metal with tempered glass
Blower Control	Variable-speed solid-state control
Work Arrangement	Large single process or coordinated dual positions
Customization	Available based on the intended application and operating environment.

Applications

For large sterile assemblies, multi-instrument life-science work and wide non-hazardous device processes. Define operator zones and recheck airflow with the actual fixtures installed across the six-foot surface.

Solutions for Your Application

Long assemblies extend outside a four-foot protected zone.Use the six-foot bench so the entire critical work remains beneath the filtered diffuser.

Two operators disturb each other's workflow and downflow.Mark separate positions and arrange materials so hands and equipment do not cross between critical zones.

Available Options

Choose airflow monitoring, UV package, stand type, electrical configuration and work-surface finish. Utility port quantity and location can be adapted to the installed instruments.

Planning a Vertical Laminar Flow Clean Bench 6 ft specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
