STJH-VBANK-CARBON-FILTER-592X287

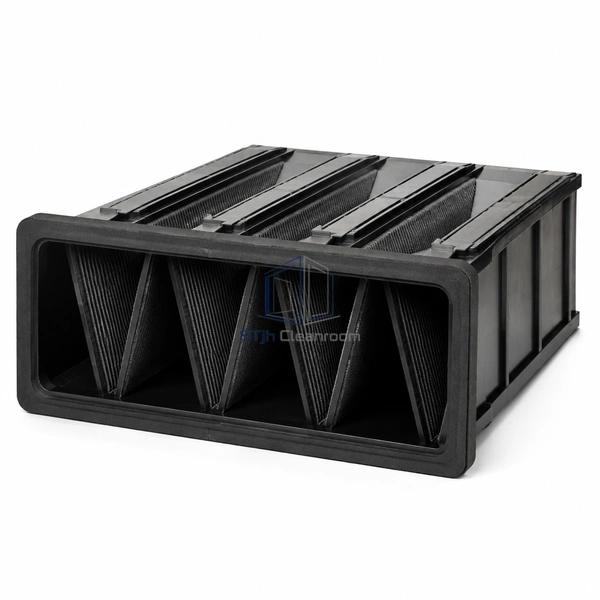

V-Bank Activated Carbon Filter 592 × 287 mm

A half-width molecular V-bank that fits narrow AHU cells while providing 1500 m3/h broad-spectrum gas control.

1500 m3/h half-module duty
80 Pa clean resistance
300 mm molded V-bank

Request a Quote Browse Products

Product Introduction

This 592 x 287 x 300 mm model packages activated-carbon pleats in a molded V-bank frame for air handlers that cannot accept a full-square cartridge. At 1500 m3/h and 80 Pa initial resistance, it gives designers a documented half-module duty for mixed urban or process gases. Its molecular function must be paired with a separate particulate stage where dust control is also required, and service life should be set from the actual gas challenge rather than pressure drop alone.

Key Features

Narrow-bank fit

The 287 mm face width lets a molecular stage occupy half-module positions, perimeter cells or compact retrofit racks without forcing a larger housing.

Defined fan load

An 80 Pa initial pressure drop at 1500 m3/h provides a clear starting point for checking the available static pressure of a smaller AHU.

Broad external-gas coverage

The activated-carbon platform is intended for low concentrations of ozone, nitrogen dioxide, sulfur dioxide and representative VOCs such as toluene.

Technical Parameters

Dimensions	592 x 287 x 300 mm
Rated Airflow	1500 m3/h
Initial Pressure Drop	80 Pa
Molecular Media	Broad-spectrum activated carbon
Target Contaminants	Ozone, NO2, SO2 and VOCs
Frame Construction	Molded plastic V-bank
Maximum Operating Temperature	40 C
Maximum Relative Humidity	70% RH
Recommended Final Pressure Drop	160 Pa; gas capacity remains the replacement basis
Customization	Available based on the intended application and operating environment.

Applications

Suited to narrow make-up-air and recirculation tracks serving clean manufacturing, laboratories or urban-air intakes where gaseous pollution must be reduced before final particle filtration. Confirm the contaminant mixture and expected concentration before choosing the carbon formulation.

Solutions for Your Application

A full-size molecular cartridge will not fit the available half-module opening.Use the 592 x 287 mm face and verify the 300 mm track depth, gasket contact and access direction against the existing rack.

Operators may wait for a pressure-rise signal even after the carbon is exhausted.Set the change interval from gas monitoring, exposure history or media analysis because adsorption capacity can be consumed while resistance remains low.

Available Options

Specify gas target, media formulation, airflow direction, gasket side, front- or side-access rack, upstream particulate protection and a contaminant-based replacement plan.
