STJH-THREE-DOOR-AIR-SHOWER-STANDARD-RH

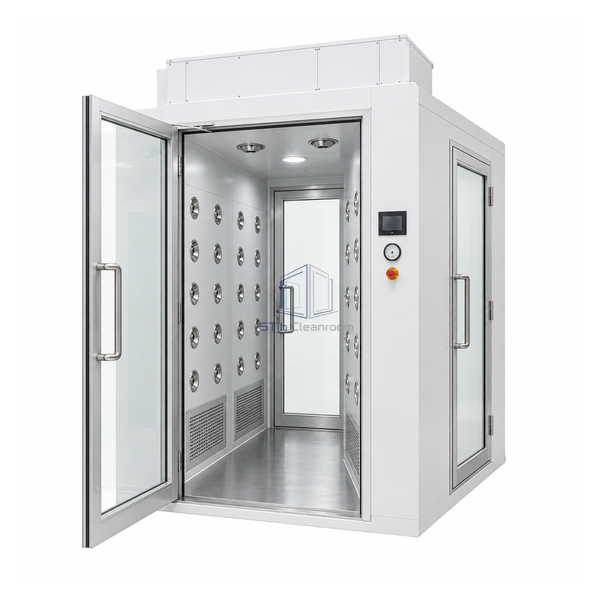

Three-Door Air Shower Standard-Profile Right-Hand

A standard-height three-door air shower that routes one controlled entrance to straight and right-hand clean-side exits.

Right-hand three-door branch
1900 CFM average airflow
32 wall plus 2 ceiling nozzles

Request a Quote Browse Products

Product Introduction

This standard-profile branching chamber uses three interlocked safety-glass doors to connect one gowning entrance with two cleanroom destinations. Its right-hand layout suits plans where the secondary clean-side route turns right. A 5 hp blower supplies an average 1900 CFM through 32 wall nozzles and two ceiling nozzles, avoiding the overhead-clearance compromise of the low-profile version.

Key Features

Two clean-side destinations

The third door lets one controlled entry serve adjacent production rooms without installing separate showers.

Right-hand facility match

The branch is handed for layouts whose lateral destination is on the right when entering the chamber.

Full standard-profile air package

The overhead arrangement houses the 5 hp blower and HEPA stage above the occupied zone.

Technical Parameters

Door Count	3 interlocked safety-glass doors
Branch Orientation	Right-hand
Average Airflow	1900 CFM
Average Nozzle Velocity	7800 FPM (39.62 m/s)
Wall Nozzles	32 adjustable outlets
Ceiling Nozzles	2 adjustable outlets
Blower Motor	5 hp (3.7 kW), 3600 RPM, continuous duty
HEPA Filter	24 x 24 x 11.5 in, 99.99%
Cycle Timing	0-99 s run time with 0-10 s adjustable wait
Customization	Available based on the intended application and operating environment.

Applications

For pharmaceutical, laboratory and precision-manufacturing gowning rooms that feed two controlled destinations from a common entrance. Confirm right-hand orientation from the user's direction of travel and ensure the door sequence does not create an unintended cross-route.

Solutions for Your Application

Two clean rooms share one gowning point but separate air showers consume too much space.Use the three-door chamber to create a controlled branch after one filtered shower cycle.

An incorrectly handed branch would open toward the wrong production room.Verify the right-hand door plan against the architectural traffic drawing before manufacture.

Available Options

Select painted or stainless panels, access control, door hardware, nozzle settings and HMI sequence. Left-hand handing is a distinct frozen model and should be selected when the branch direction is reversed.

Planning a Three-Door Air Shower Standard-Profile Right-Hand specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
