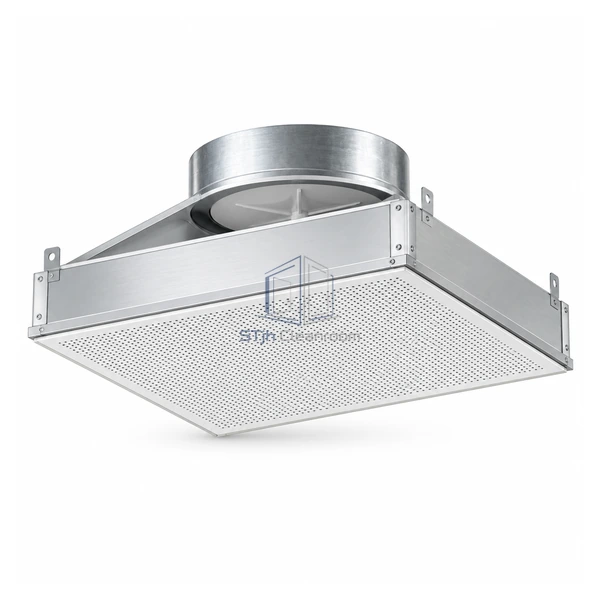

Terminal HEPA Filter Housing Slim with 10 in Collar

A lightweight low-profile terminal integrating a thin HEPA pack, round collar and diffusion disc for shallow plenums.

4.75 in overall depth
10 in round collar
Integrated 41 mm HEPA pack

Request a Quote Browse Products

Product Introduction

With an overall depth of 4.75 in, this module is substantially shallower than a separate filter box and full-depth HEPA. A 41 mm filter pack, 10 in round collar and diffusion disc are integrated into an extruded aluminum frame for 1.5 or 2 in T-bar grids. The compact assembly is intended for low interstitial spaces, but duct velocity, terminal airflow and ceiling support must be checked because the shallow plenum offers limited room for distribution.

Key Features

Very shallow assembly

The integrated filter and diffuser reduce the vertical space required above the ceiling.

Light aluminum frame

Extruded construction lowers terminal mass and fits common cleanroom T-bar arrangements.

Built-in diffusion disc

An internal disc helps distribute air entering from the round collar across the thin filter face.

Technical Parameters

Overall Depth	4.75 in
Filter Pack Depth	41 mm
Duct Connection	10 in round collar
Frame Material	Extruded aluminum
Ceiling Grid	1.5 or 2 in T-bar
Air Distribution	Integrated diffusion disc
Filter Type	Low-profile terminal HEPA module
Access	Room-side face
Installation Duty	Shallow ceiling plenum
Customization	Available based on the intended application and operating environment.

Applications

For medical suites, clean-process rooms and laboratories where shallow interstitial height prevents the use of a conventional deep terminal housing.

Solutions for Your Application

High collar velocity creates nonuniform flow across the thin filter pack.Keep terminal airflow within the selected module rating and provide a suitable upstream branch and balancing damper.

The ceiling grid carries the terminal without adequate independent support.Coordinate hangers and seismic or local support requirements for the actual ceiling system and module mass.

Available Options

Confirm module face size, 10 in collar position, ceiling grid width, airflow, balancing device, room-side test access and surface finish.
