A single laminated pane does not provide the specified insulating-unit construction.
Combine the PDLC laminate with a second lite and sealed spacer cavity.
STJH-SWITCHABLE-PRIVACY-GLASS-CLEANROOM-WINDOW-PDLC-INSULATED
Switchable Privacy Glass Cleanroom Window PDLC Insulated-Glass

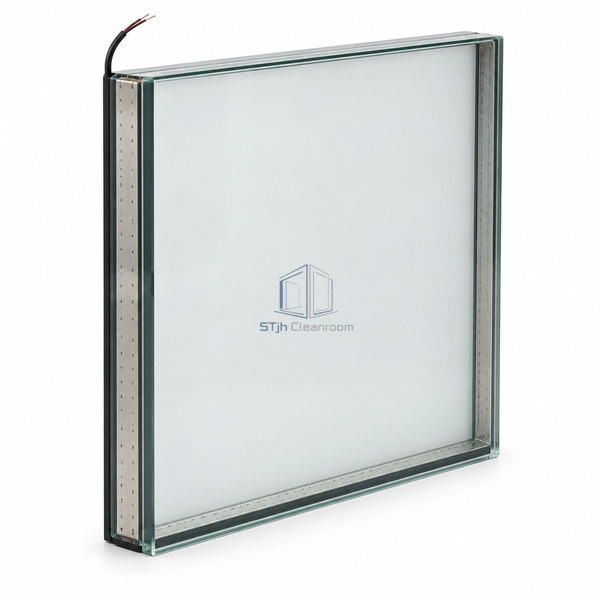

A sealed insulating-glass unit that combines a PDLC privacy laminate with a second viewing lite.
- A spacer cavity distinguishes the assembly from a single privacy laminate.
- The second lite provides a separate glass face toward the adjoining room.
- Perimeter wiring keeps the central observation area free of cable runs.
Product Introduction
The switchable laminate forms one lite of this insulating-glass assembly. A perimeter spacer separates it from a second glazing lite, creating a sealed cavity between the two sides. The PDLC layer changes visual privacy electrically while the additional glass and cavity provide a distinct window construction for conditioned rooms. The unit can be integrated into a compatible double-flush cleanroom frame, with the electrical connection routed at the perimeter rather than across the viewing surface.
Key Features
- A spacer cavity distinguishes the assembly from a single privacy laminate.
- The second lite provides a separate glass face toward the adjoining room.
- Perimeter wiring keeps the central observation area free of cable runs.
Technical Parameters
| Privacy Technology | PDLC laminated lite |
|---|---|
| Unit Construction | Insulating glass unit |
| Glazing Arrangement | Switchable laminate plus second lite |
| Cavity | Sealed spacer cavity |
| Spacer Location | Continuous perimeter |
| Privacy Operation | Translucent-to-transparent switching |
| Control Interface | Electrical controller |
| Frame Integration | Double-flush cleanroom-compatible frame |
| Electrical Connection | Perimeter edge connection |
| Customization | Lite build, cavity depth and overall dimensions can be adapted to the intended conditioned-room privacy window. |
Applications
- Privacy observation between conditioned medical rooms
- Double-sided viewing boundaries in controlled laboratories
Solutions for Your Application
Electrical connections could intrude into the viewing field.
Route the switchable lite connection through the perimeter frame interface.
Available Options
- Cavity-depth selection
- Custom unit dimensions
- Compatible switch or room-control input
Planning a Switchable Privacy Glass Cleanroom Window PDLC Insulated-Glass specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
