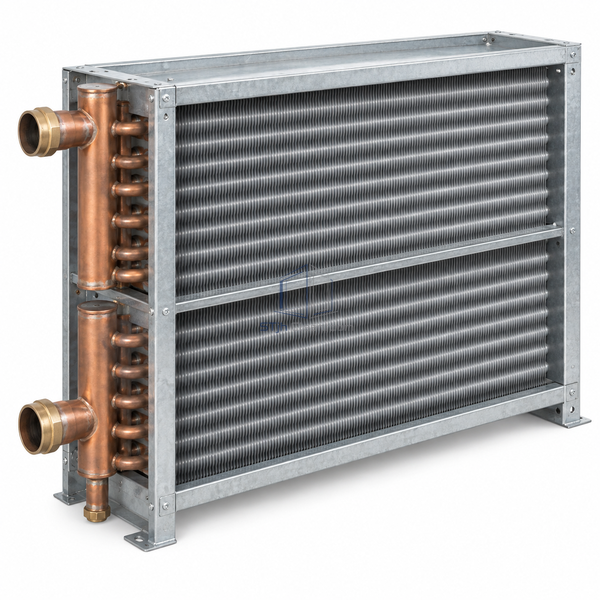

STjh two-row five-eighth-inch steam heating coil with a deeper finned core and distributing headers on white.

STJH-STEAM-HEATING-COIL-2ROW-58IN

Steam Heating Coil Two-Row 5/8-Inch

A deeper two-row 5/8 inch steam-distributing coil that adds heat-transfer surface for higher-capacity clean AHU heating.

Two-row heat-transfer depth
5/8 inch steam tubes
Aluminum or copper fin options

Request a Quote Browse Products

Product Introduction

The two-row core doubles tube depth relative to the thin one-row 5/8 inch model. Its internal steam distribution and condensate-return arrangement provides additional surface for higher heating capacity while retaining the smaller tube geometry.

Key Features

Higher surface area

A second tube row adds heat-transfer depth for larger air-temperature rise or capacity.

Steam-distributing circuit

Internal distribution supplies both rows while supporting condensate movement toward the return.

Material flexibility

Aluminum or copper fins and casing choices adapt the core to air quality and maintenance needs.

Technical Parameters

Rows	2
Tube Outside Diameter	5/8 in
Circuit	Steam distributing
Fin Material	Aluminum or copper
Casing	Galvanized or stainless steel option
Heating Medium	Steam
Core Depth	Two-row construction
Connections	Steam inlet and condensate return
Installation	Drainable orientation with suitable trap
Customization	Face area, fin material and steam distribution can be configured for the intended application and operating environment.

Applications

Higher-capacity clean AHU steam heating, outdoor-air preheat, pharmaceutical ventilation and make-up air systems.

Solutions for Your Application

A one-row 5/8 inch coil cannot deliver the required temperature rise at available face area.Use the two-row core and select steam pressure, fin spacing and face velocity for the target capacity.

The deeper steam core may retain condensate in the second row.Use the distributing circuit and install both coil and trap with positive drainage and correct return sizing.

Available Options

Fin material and spacing, stainless casing, face dimensions, steam connection side, intermediate drainage and protective coating are available.
