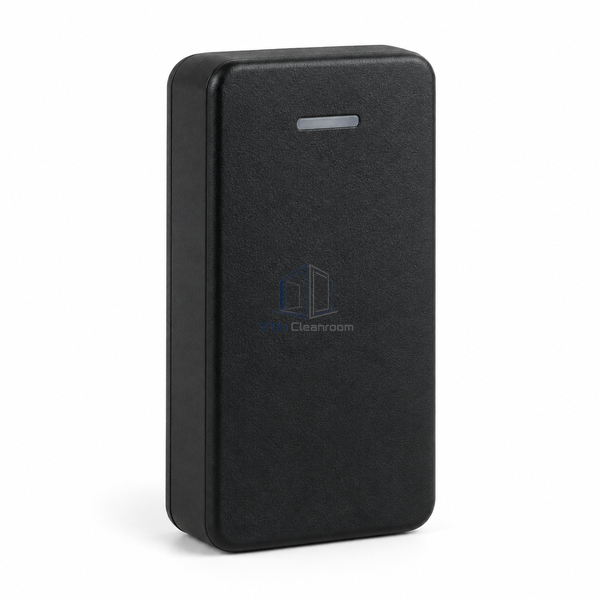

STJH compact 13.56 MHz smart-card reader with short rectangular housing shown on white.

STJH-SLIM-CLEANROOM-ACCESS-CONTROL-CARD-READER-13M56

Slim Cleanroom Access Control Card Reader 13.56 MHz Secure Smart-Card

Use high-frequency contactless credentials with a compact smart-card reader and supervised communication options.

Compact proportions suit limited mounting space.
Several supported smart-card families allow credential selection.
OSDP provides a supervised reader-controller interface.

Request a Quote Browse Products

Product Introduction

The mini-mullion reader uses 13.56 MHz electronics within a short rectangular housing. It reads supported contactless credential formats and passes identity information to the connected access controller. OSDP provides a communication option for installations using that protocol, while alternative interface configurations support compatible existing equipment. The small footprint suits door approaches where a full wall reader would be intrusive, without combining a keypad or biometric sensor into the device.

Key Features

Compact proportions suit limited mounting space.
Several supported smart-card families allow credential selection.
OSDP provides a supervised reader-controller interface.

Technical Parameters

Frequency	13.56 MHz
Dimensions	48 x 103 x 23 mm
Mounting Format	Mini-mullion
Credential Technology	Contactless smart card
Supported Families	Compatible Seos, iCLASS and MIFARE DESFire formats
Communication Options	OSDP or Wiegand
Credential Shapes	Cards and fobs
Keypad	Not included
Controller Arrangement	External access controller
Customization	Credential and interface configuration can suit the intended access platform.

Applications

Compact laboratory smart-card entrances.
Cleanroom reader upgrades using OSDP.

Solutions for Your Application

Available space cannot accommodate a large reader.

The 48 x 103 mm footprint provides a compact mounting form.

The access platform requires supervised communication.

Select the supported OSDP interface configuration.

Available Options

OSDP connection.
Wiegand configuration.
Supported card or fob format.

Planning a Slim Cleanroom Access Control Card Reader 13.56 MHz Secure Smart-Card specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
