STJH-REINFORCED-WALK-ON-CLEANROOM-CEILING-PANEL-60-REMOVABLE

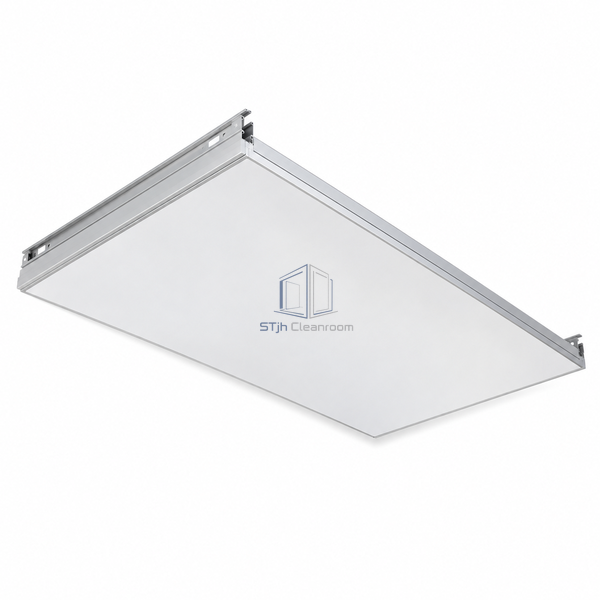

Reinforced Walk-On Cleanroom Ceiling Panel 60 mm Individually Removable

Walk-on ceiling module that releases independently for service work.

Large modules limit the number of silicone joint lines.
Individual demounting permits replacement at the affected bay.

Request a Quote Browse Products

Product Introduction

A coated-steel sandwich surrounds the aluminum honeycomb core, with hanging profiles built into the module. The concealed suspension produces a smooth underside, and factory-formed apertures receive the selected ceiling services.

Key Features

Large modules limit the number of silicone joint lines.
Individual demounting permits replacement at the affected bay.

Technical Parameters

Width	1200 mm
Length	2400 mm
Thickness	60 mm
Core Material	Aluminum honeycomb
Surface	Coated steel
Support	Integrated hanging profiles
Access Method	Individual panel removal
Room Face	Fully flush
Openings	Factory-formed ceiling apertures
Customization	Available to suit the intended service access and ceiling layout.

Applications

Serviceable pharmaceutical ceilings
Production rooms with replaceable overhead modules

Solutions for Your Application

A maintenance point needs a smaller opening than an entire ceiling panel.

A flush service hatch with a rubber seal is available within the ceiling layout.

Site cutting creates debris above a clean space.

Place the required lighting and ventilation apertures in the factory-cut panel layout.

Available Options

Flush lighting integration
Prefabricated openings

Planning a Reinforced Walk-On Cleanroom Ceiling Panel 60 mm Individually Removable specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.

Talk to Our Team
