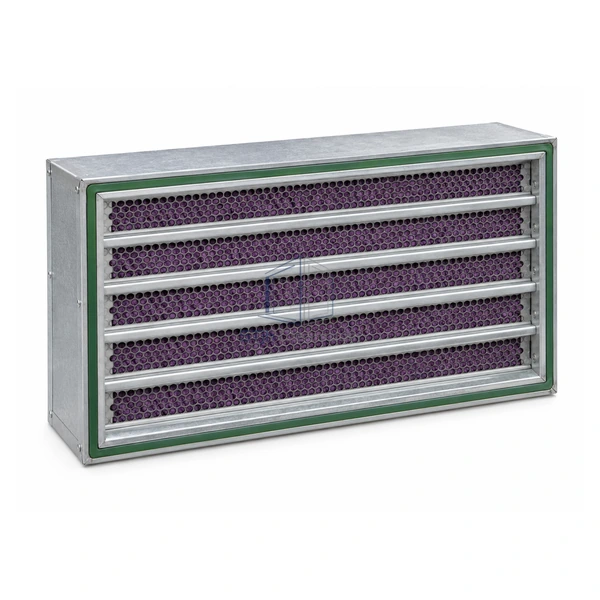

STjh 610 x 152 x 457 mm permanganate media filter main view

STJH-PERMANGANATE-MEDIA-FILTER-610X152X457

Permanganate-Impregnated Media Filter 610 × 152 × 457 mm Low-Drop

A narrow half-cubic-foot cassette designed to add permanganate gas treatment where fan static is limited.

101 Pa maximum drop
One-inch media bed
0.5 ft3 media charge

Request a Quote Browse Products

Product Introduction

The 610 x 152 x 457 mm format reorients the chemical bed into a narrow six-inch-high cassette. Its one-inch media path and 0.5 ft3 charge hold the maximum published resistance to 101 Pa at 2.54 m/s, trading some total capacity for easier integration into constrained air handlers. It is most useful when molecular filtration must be retrofitted without the pressure demand of the deeper 305 mm module.

Key Features

Static-pressure economy

The shallow bed reduces airflow resistance relative to the three-inch packed module.

Narrow cassette profile

A 152 mm module height supports retrofit arrangements that cannot accept a 305 mm face.

Serviceable chemical stage

The factory-filled cassette can be exchanged as a complete unit without loose-media transfer at the rack.

Technical Parameters

Nominal Dimensions	610 x 152 x 457 mm
Media Volume	0.5 ft3
Packed Bed Depth	1 in
Maximum Pressure Drop	101 Pa at 2.54 m/s
Media Type	Permanganate-impregnated engineered media blend
Construction	Disposable sealed module
Reference Face Velocity	2.54 m/s
Primary Advantage	Reduced molecular-stage resistance
Installation	Narrow gas-phase cassette rack
Customization	Available based on the intended application and operating environment.

Applications

Fits gas-phase retrofits, compact AHUs and cleanroom support systems that need corrosion or odor control but have restricted fan static and rack height.

Solutions for Your Application

Reducing bed depth causes the media to reach breakthrough too soon.Estimate chemical load against the 0.5 ft3 charge and increase parallel modules or service frequency when capacity is insufficient.

A retrofit rack bypasses air around the narrow cassette.Use continuous perimeter seals and blanking plates so the measured airflow passes through the chemical bed.

Available Options

Select media chemistry, module quantity, gasket arrangement, access side, prefilter, gas monitoring and maintenance interval from site conditions.
