STJH-MODULAR-CLEANROOM-WALL-PANEL-60-SERVICE

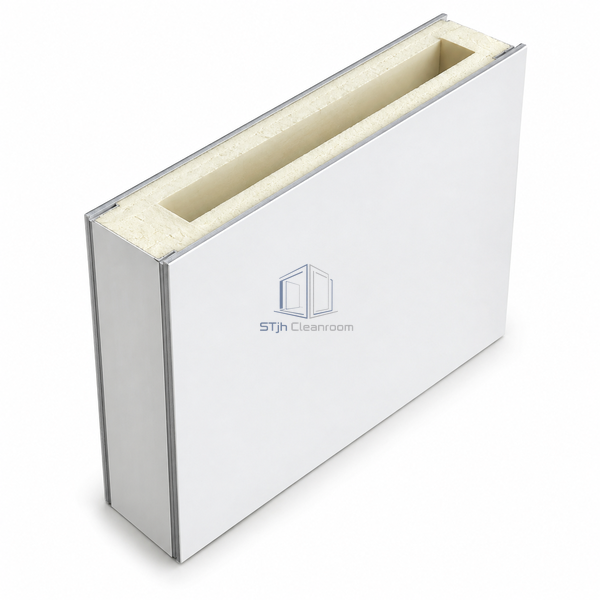

Modular Cleanroom Wall Panel 60 mm Flush with Service Void

Flush insulated partition with a longitudinal wiring passage.

The internal cable route keeps conduit away from the exposed wall surface.
Variable-width modules accommodate narrow infill locations.

Request a Quote Browse Products

Product Introduction

Metal faces enclose the insulated body, and aluminum perimeter extrusions form the modular connection. The service-cavity version incorporates a longitudinal passage within the 60 mm wall section.

Key Features

The internal cable route keeps conduit away from the exposed wall surface.
Variable-width modules accommodate narrow infill locations.

Technical Parameters

Panel Thickness	60 mm
Service Void	25 mm longitudinal
Length Range	300–5700 mm
Minimum Width	150 mm
Width Increments	10 mm
Construction	Metal-faced insulated panel
Joint	Fully flush precision connection
Surface Finish Options	Polyester coating, PET film or PVC film
Installation	Internal modular partition
Customization	Available to suit the actual service route and room layout.

Applications

Instrument wiring within laboratory walls
Concealed control cables in pharmaceutical partitions

Solutions for Your Application

A cable connection is larger than the straight cable run.

Check the connector envelope and cable bend space against the 25 mm passage before choosing the route.

The service wall must meet a door or viewing panel.

Use matching flush enclosure components and position the cable exit around the opening perimeter.

Available Options

Matching technical access modules
Factory-sized lengths
