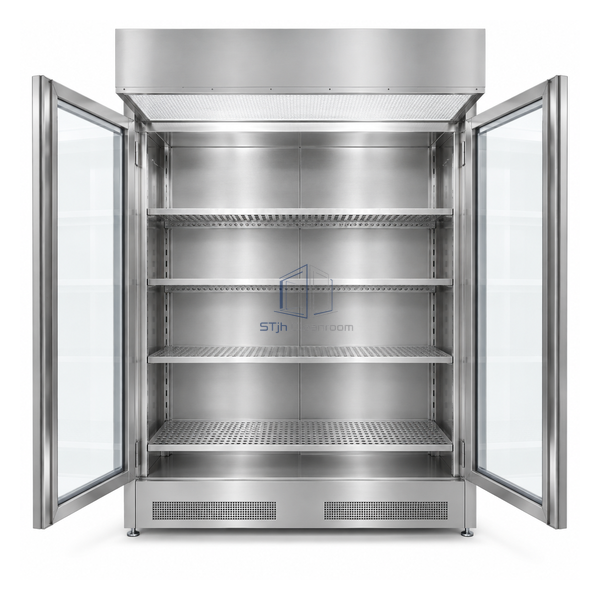

STjh wide 48 inch stainless laminar storage cabinet with double doors, ULPA roof and broad shelves

STJH-LAMINAR-STORAGE-CABINET-48SS-ULPA

Laminar Storage Cabinet 48 in Stainless Steel ULPA

A wide ULPA-filtered stainless cabinet for large contamination-sensitive devices and broad component trays.

48 in wide cabinet
47.5 in usable storage width
ULPA-filtered stainless enclosure

Request a Quote Browse Products

Product Introduction

The 48 x 24 x 72 in cabinet doubles the nominal width of the compact model and provides a 47.5 x 24 x 38.75 in storage area. ULPA-filtered laminar airflow protects larger semiconductor devices, medical components and wide trays awaiting use. The broad shelf span needs disciplined loading so items do not block circulation.

Key Features

Wide-item capacity

The nearly four-foot storage width accepts large devices and trays that cannot fit the compact cabinet.

High-efficiency clean storage

ULPA-filtered airflow limits particle deposition on staged contamination-sensitive parts.

Durable stainless interior

304 stainless surfaces support repeated cleaning around production storage.

Technical Parameters

External Dimensions	48 W x 24 D x 72 H in
Storage Area	47.5 W x 24 D x 38.75 H in
Cabinet Material	304 stainless steel
Final Filter	ULPA
Airflow	Laminar filtered circulation
Shelving	Wide perforated adjustable shelves
Footprint	Double-width cabinet
Storage Access	Front door arrangement
Intended Load	Large devices and component trays
Customization	Available based on the intended application and operating environment.

Applications

For large semiconductor devices, medical components and broad trays staged near clean production. Set shelf loads and spacing around the actual items to maintain the filtered-air path.

Solutions for Your Application

Large devices cannot be stored without tilting in a 24 in cabinet.Use the 47.5 in usable width to support broad items in their normal orientation.

Dense loading creates weak airflow behind components.Use perforated shelves and defined spacing around each large stored item.

Available Options

Select shelf quantity, door style, monitoring, electrical supply and base configuration. Internal supports can be adapted for trays or individual devices.

Planning a Laminar Storage Cabinet 48 in Stainless Steel ULPA specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.

Talk to Our Team
