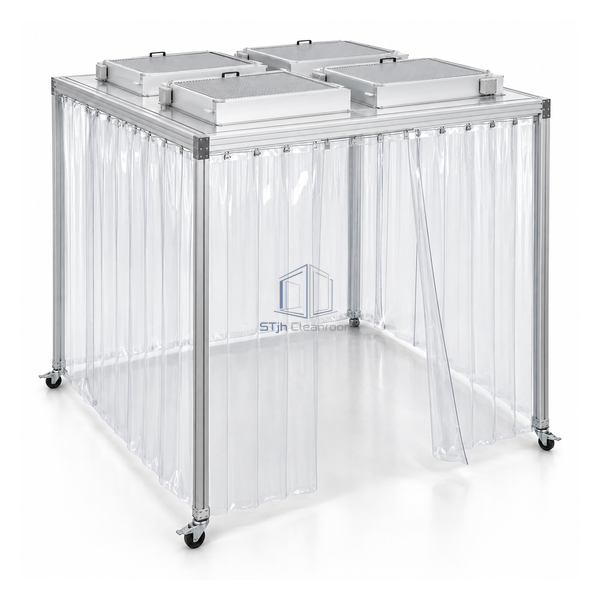

STjh 2000 by 2000 mm square laminar-flow canopy with four H14 roof modules and clear flexible curtains

STJH-LAMINAR-FLOW-CANOPY-2000X2000

Laminar Flow Canopy 2000 × 2000 mm Flexible-Wall

A compact square softwall canopy that creates a localized positive-pressure clean zone around one process station.

2 x 2 m protected footprint
H14 HEPA ceiling modules
Clear flexible curtain perimeter

Request a Quote Browse Products

Product Introduction

The 2000 x 2000 x 2350 mm canopy encloses a four-square-metre area with clear flexible curtains and ceiling-mounted clean-air modules. H14 HEPA-filtered vertical airflow creates positive pressure inside the enclosure while return air recirculates to the surrounding room. The square footprint suits one inspection table or compact precision machine where a permanent cleanroom is unnecessary.

Key Features

Compact localized zone

The square plan protects one process without conditioning the entire surrounding room.

Flexible access

Clear curtains allow material entry while maintaining a simple positive-flow boundary.

Reconfigurable construction

A modular mobile frame can be relocated or expanded as process layouts change.

Technical Parameters

Overall Dimensions	2000 W x 2000 D x 2350 H mm
Protected Floor Area	4 m²
Airflow Direction	Vertical laminar downflow
Pressure Mode	Localized positive pressure
Final Filter	H14 HEPA
Published Filter Efficiency	99.97% at 0.3 µm
Wall Material	Clear flexible curtains
Construction	Modular scalable frame
Mobility	Mobile configuration available
Customization	Available based on the intended application and operating environment.

Applications

For compact research, optics, inspection and precision-assembly processes that need cleaner local air without a permanent room. Keep curtain openings small and avoid blocking ceiling airflow with tall equipment.

Solutions for Your Application

A full cleanroom is disproportionate for one small process.Use the four-square-metre canopy to concentrate HEPA airflow around the critical station.

Rigid walls make frequent equipment access difficult.Use the flexible curtain perimeter and define a controlled opening for materials.

Available Options

Configure clean-air module count, curtain opening, frame mobility, lighting and service penetrations. Dimensions can be adjusted around the equipment footprint and target cleanliness.

Planning a Laminar Flow Canopy 2000 × 2000 mm Flexible-Wall specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
