Knife-Edge HEPA Filter 305 × 305 × 109 mm H14

A quarter-module H14 ePTFE panel for compact gel-grid cells, rated at 150 m3/h and 55 Pa.

305 x 305 mm quarter module
150 m3/h at 55 Pa
Integral knife-edge frame

Request a Quote Browse Products

Product Introduction

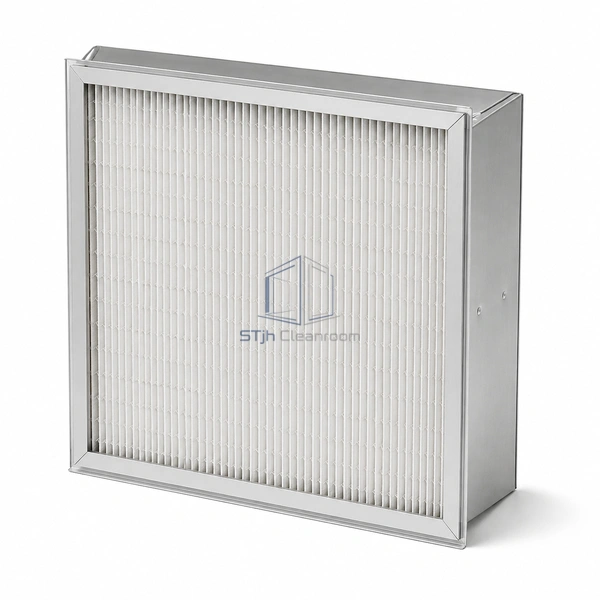

This 305 x 305 mm square panel packages H14 ePTFE media in a 109 mm-deep frame with an integral knife edge. At its documented 150 m3/h duty the starting pressure drop is 55 Pa. The small face format lets equipment designers place final filtration over a localized process zone without adopting a half- or full-ceiling module.

Key Features

Localized clean-air footprint

The square quarter module concentrates filtered supply over a small tool opening or mini-environment.

Gel-grid engagement

The integral knife edge penetrates the receiver gel and avoids a separate compressible face gasket.

Robust membrane pack

ePTFE media provides high tensile strength and low resistance for careful tool-side handling.

Technical Parameters

Overall Dimensions	305 x 305 x 109 mm
Efficiency Grade	H14
Filter Medium	Supported ePTFE membrane
Rated Air Volume	150 m3/h
Initial Pressure Drop	55 Pa
Frame Interface	Integral knife edge
Pleat Format	Membrane mini-pleat
Receiver Type	Gel-seal ceiling grid or tool housing
Module Format	Quarter module
Customization	Available based on the intended application and operating environment.

Applications

Used in compact process tools, mini-environments and small common-plenum ceiling cells that accept a knife edge into a gel receiver. It is the appropriate size when the required duty is around 150 m3/h; larger zones should use the half- or double-length models rather than overdriving this face area.

Solutions for Your Application

A standard ceiling module is too large for the protected tool opening.The 305 mm square footprint provides an H14 terminal over a localized process area.

The knife edge is not centered in the existing gel trough.Verify receiver geometry and insertion depth before clamping, then inspect the gel path for a continuous impression.

Available Options

Confirm airflow direction, knife-edge position, grille face, gel compatibility and exact housing clear opening before fabrication.

Planning a Knife-Edge HEPA Filter 305 × 305 × 109 mm H14 specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
