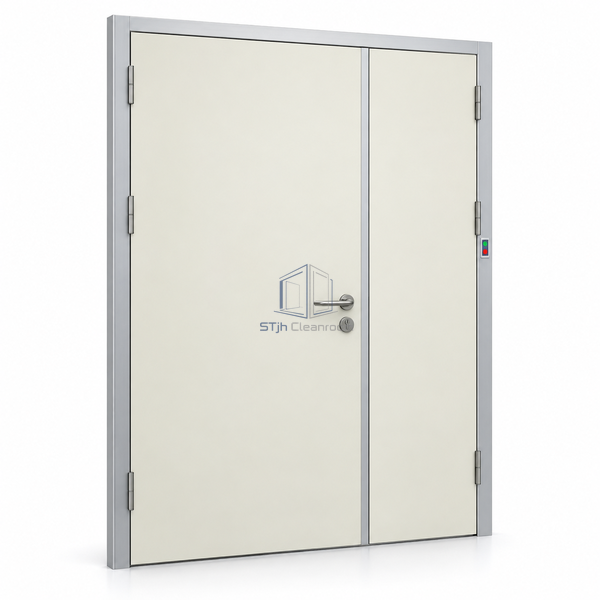

STjh 1350 mm HPL interlocked cleanroom door with unequal leaves and a compact access-status indicator against white.

STJH-INTERLOCKED-CLEANROOM-DOOR-HPL-1350

Interlocked Cleanroom Door 1350 mm Unequal-Leaf HPL

An unequal-leaf HPL interlocked door for a 1350 x 2100 mm opening and occasional wider transfers.

Routine passage can use only the larger leaf.
A secondary leaf gives extra transfer width when needed.
The HPL faces maintain a nonmetallic finish across the pair.

Request a Quote Browse Products

Product Introduction

The larger active leaf handles routine access while a narrower secondary leaf makes the full opening available for material movement. Both sit inside one cleanroom frame sized for a 1350 x 2100 mm door hole. HPL panels provide smooth exposed faces and the selected control arrangement adds interlocking to the complete doorset. The unequal division distinguishes this model from both a single interlocked door and an equal-leaf pair. The control sequence should monitor the usable opening, including secondary-leaf closure when that leaf is released.

Key Features

Routine passage can use only the larger leaf.
A secondary leaf gives extra transfer width when needed.
The HPL faces maintain a nonmetallic finish across the pair.

Technical Parameters

Door-Hole Width	1350 mm
Door-Hole Height	2100 mm
Leaf Division	Unequal double leaf
Surface Material	HPL
Opening Action	Hinged
Control Selection	Interlocking
Frame Installation	Cleanroom panel wall
Wall Thickness Options	50 or 100 mm
Closure Options	Exposed or concealed closer
Customization	Available for the required access sequence and transfer conditions.

Applications

Interlocked routes for occasional instrument movement
HPL-partition personnel and material access points

Solutions for Your Application

A wide leaf is inconvenient for routine staff entry.

Use the active leaf daily and release the smaller leaf for larger loads.

Secondary-leaf operation may bypass the access sequence.

Include the secondary leaf in the closed-state arrangement whenever its opening affects the interlock boundary.

Available Options

Exposed or hidden door closer
Entry-side handle-lock selection
Frame adaptation for 50 or 100 mm wall panels
