STJH-HVAC-DAMPER-ACTUATOR-40NM-FLOATING

HVAC Damper Actuator 40 Nm 24 V High-Torque

High-torque rotary drive for large blades and jackshaft arrangements.

The larger torque output suits mechanically demanding blade banks.
A manual release assists alignment during shaft installation.

Request a Quote Browse Products

Product Introduction

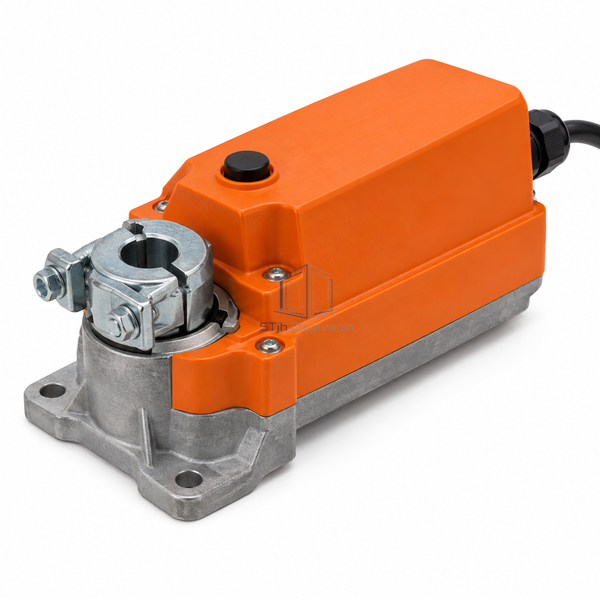

The larger gear housing and shaft coupling address dampers whose resistance exceeds the smaller actuator class. A floating three-point command drives the motor in either direction and stops it at the commanded position.

Key Features

The larger torque output suits mechanically demanding blade banks.
A manual release assists alignment during shaft installation.

Technical Parameters

Output Torque	40 Nm
Power Supply	24 V AC/DC
Control Type	Floating three-point; on-off wiring option
Fail-Safe	Non fail-safe
Running Time	150 s per 90 degrees
Rotation	95 degrees
Power During Travel	4 W
Holding Consumption	2 W
Manual Release	External push button
Customization	Available for the large-damper shaft and intended control application.

Applications

Large ventilation blade banks
Jackshaft-driven duct dampers

Solutions for Your Application

A small actuator cannot overcome the damper operating torque.

The 40 Nm output provides a higher torque class for the mechanical load.

The controller provides directional contacts rather than an analog signal.

Floating three-point operation accepts separate opening and closing commands.

Available Options

Jackshaft linkage
Shaft extensions
Mounting brackets
