STJH-HIGH-AIRFLOW-MEDIUM-FILTER-1800

High-Airflow Medium-Efficiency Filter 1800 m3/h Half-Module

A narrow E10 V-bank module for 1800 m3/h process-air duty at operating temperatures up to 120 °C.

610 × 305 mm half module
E10 filtration
120 °C maximum temperature

Request a Quote Browse Products

Product Introduction

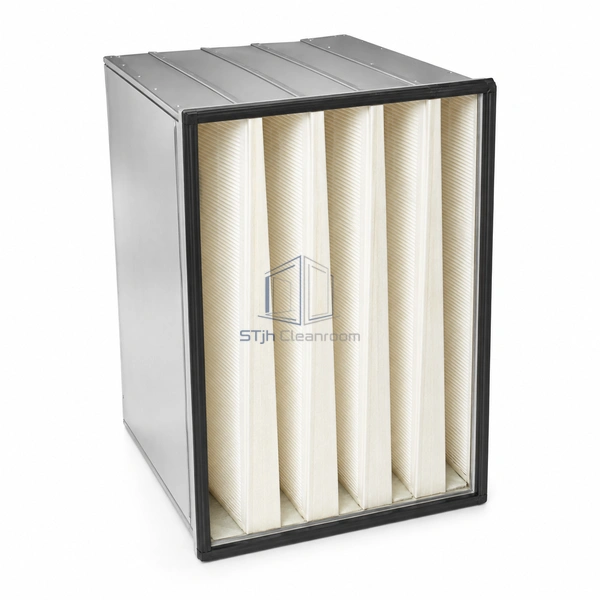

This 610 × 305 × 292 mm E10 compact filter is the half-module member of the high-temperature airflow family. Its narrow face handles 1800 m3/h with a published 190 Pa initial pressure drop and is designed for temperatures up to 120 °C. The size is suited to constrained process-air banks and support ventilation near thermal or sterilization operations.

Key Features

Narrow high-temperature module

The 305 mm width fits split banks while the construction supports elevated process-air temperature.

Defined half-module airflow

A nominal 1800 m3/h rating allows the filter to be combined predictably in modular arrays.

Compact E10 pack

The 292 mm V-bank depth provides high media area without long pockets in heated airflow.

Technical Parameters

Overall Dimensions	610 × 305 × 292 mm
Filter Class	E10
Nominal Airflow	1800 m3/h
Initial Pressure Drop	190 Pa
Maximum Operating Temperature	120 °C
Module Format	Half-width high-airflow cassette
Nominal Depth	292 mm
Media Arrangement	Compact V-bank packs
Primary Duty	Heated process supply or recirculation air
Customization	Available based on the intended application and operating environment.

Applications

Designed for narrow process-air systems, sterilization support ventilation and heated clean manufacturing supply where E10 filtration is appropriate. Multiple half modules can be arranged around fixed equipment or nonstandard bank geometry.

Solutions for Your Application

A full-size filter cannot fit around process equipment inside the air handler.The 305 mm half-module width provides a modular high-temperature E10 option for the remaining bay.

Normal HVAC filters may not tolerate the specified warm-air duty.Use this construction within its 120 °C maximum operating temperature and verify the complete system temperature profile.

Available Options

Confirm high-temperature gasket, header style, installation orientation and exact operating temperature before ordering.

Planning a High-Airflow Medium-Efficiency Filter 1800 m3/h Half-Module specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
