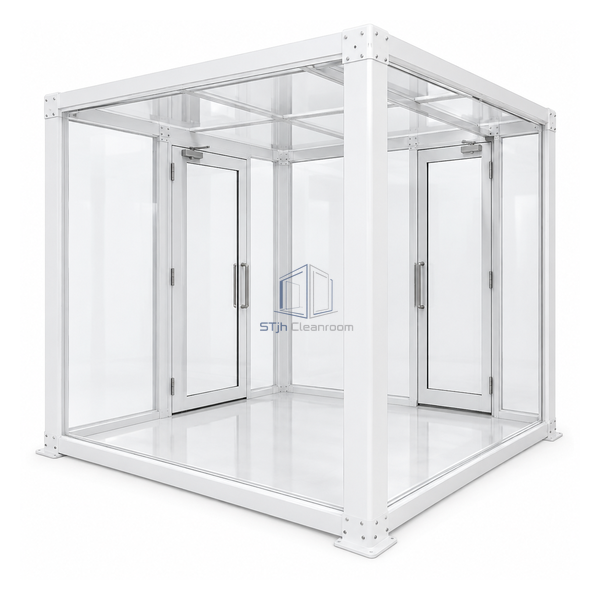

STjh large 8 by 8 foot acrylic hardwall gowning airlock with broad clear-panel room and reinforced frame

STJH-GOWNING-AIRLOCK-8X8-ACRYLIC

Cleanroom Gowning Airlock 8 × 8 ft Clear-Acrylic

A larger transparent gowning airlock with space for benches, garment handling and higher-volume personnel flow.

8 x 8 ft expanded floor area
Clear supervised hardwalls
Space for benches and garment handling

Request a Quote Browse Products

Product Introduction

The 96 x 96 x 96 in configuration increases floor area by roughly seventy-eight percent over a 6 ft square chamber. Clear acrylic hardwalls preserve visual supervision while the additional width supports a bench, footwear boundary and garment handling without crowding the door swings. It is aimed at busier cleanroom entrances that need an orderly sequence rather than a one-person pause.

Key Features

Higher-throughput layout

The 96 in square plan accommodates a more orderly flow of incoming and outgoing personnel.

Integrated gowning furniture

The wider interior can accept a crossover bench and dedicated garment or footwear stations.

Visible occupancy

Transparent rigid walls let staff see chamber use and prepare the next entry without opening a door.

Technical Parameters

External Dimensions	96 W x 96 D x 96 H in
Panel Material	Clear acrylic hardwall
Frame Material	Powder-coated steel
Wall Type	Rigid transparent panels
Nominal Design Basis	ISO 8 gowning transition
Traffic Capacity	Multi-step personnel workflow
Door Arrangement	Two-door personnel transition
Interior Fit-Out	Bench, garment and footwear zones
Visibility	Clear wall panels for supervision
Customization	Available based on the intended application and operating environment.

Applications

For busy pharmaceutical, research and medical-device cleanroom entrances that need in-chamber gowning furniture and clearer personnel circulation. Mark clean and less-clean zones so the extra floor area does not become uncontrolled storage.

Solutions for Your Application

Personnel block the doors while changing inside a 6 ft square enclosure.Use the 8 x 8 ft plan to separate door swing, bench and garment-handling zones.

Supervisors need to assess occupancy before releasing the next user.Clear acrylic walls make the internal sequence visible from either side.

Available Options

Configure crossover bench, garment racks, lighting, filtered ceiling coverage, access control and door orientation. Internal zoning can be adapted to the site's written gowning procedure.

Planning a Cleanroom Gowning Airlock 8 × 8 ft Clear-Acrylic specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
