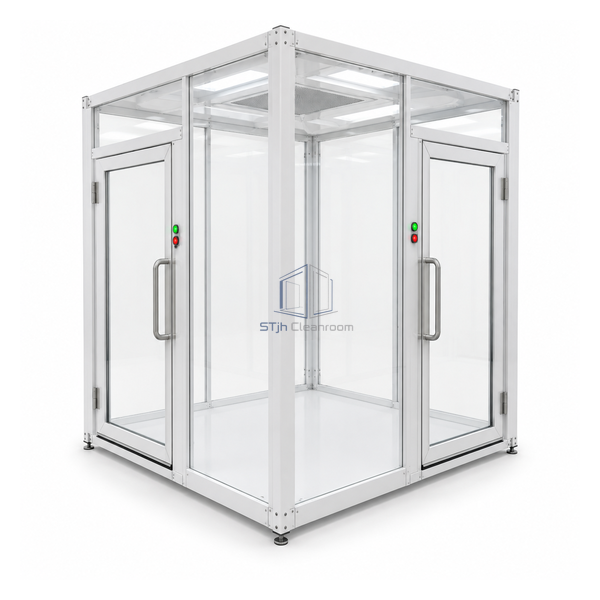

STjh compact 6 by 6 foot hardwall gowning airlock with clear acrylic panels and interlocked swing doors

STJH-GOWNING-AIRLOCK-6X6-ACRYLIC

Cleanroom Gowning Airlock 6 × 6 ft Clear-Acrylic

A compact transparent hardwall airlock that supports visually supervised one-person gowning transitions.

6 x 6 ft compact footprint
Clear acrylic hardwall panels
Visible gowning workflow

Request a Quote Browse Products

Product Introduction

This 72 x 72 x 96 in gowning airlock uses clear acrylic hardwall panels within a powder-coated frame. The transparent enclosure helps supervisors observe gowning steps and lets users see whether the small chamber is occupied before entry. Its compact footprint is suited to low-throughput doorways where benches and garment dispensers are arranged outside or along a limited interior wall.

Key Features

Unobstructed supervision

Clear panels keep gowning actions and chamber occupancy visible from adjacent rooms.

Compact entry enclosure

The 6 ft square plan creates a defined transition without consuming the floor area of a larger gowning room.

Modular hardwall shell

Powder-coated framing supports rigid panels, doors and ceiling components in a relocatable assembly.

Technical Parameters

External Dimensions	72 W x 72 D x 96 H in
Panel Material	Clear acrylic hardwall
Frame Material	Powder-coated steel
Wall Type	Rigid transparent panels
Nominal Design Basis	ISO 8 gowning transition
Traffic Capacity	Compact single-person workflow
Door Arrangement	Two-door personnel transition
Interior Fit-Out	Open area for compact bench or garment point
Visibility	Full-height clear side panels
Customization	Available based on the intended application and operating environment.

Applications

For compact pharmaceutical, laboratory and medical-device entrances where visible gowning discipline is more important than static-dissipative wall performance. Confirm bench placement and door swing because the 6 ft square plan provides limited internal staging space.

Solutions for Your Application

Supervisors cannot see whether gowning steps are followed inside an opaque vestibule.Use the clear acrylic walls to provide direct observation from the support area.

A large gowning room will not fit at a small laboratory entrance.Choose the 6 x 6 ft shell and keep bulk garment storage outside the transition chamber.

Available Options

Configure door handing, ceiling panels, lighting, bench position, access control and powder-coat color. Filtered ceiling modules can be added where the room airflow plan requires them.

Planning a Cleanroom Gowning Airlock 6 × 6 ft Clear-Acrylic specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
