STJH-GASKET-SEAL-HEPA-H14-70

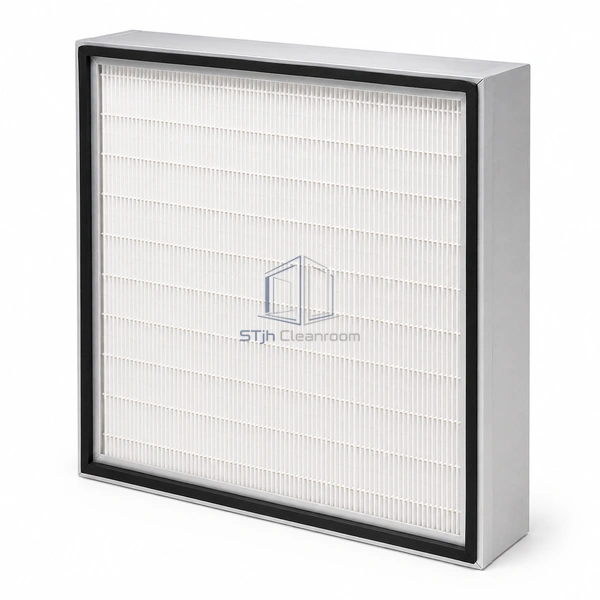

Gasket-Seal HEPA Filter 70 mm H14 EPDM

A 70 mm H14 panel using an EPDM compression gasket for cleaned and disinfected terminal grids.

70 mm balanced depth
H14 microglass media
EPDM compression gasket

Request a Quote Browse Products

Product Introduction

The 70 mm panel provides H14 filtration in a balanced-depth mini-pleat format. Its continuous EPDM gasket is selected where the seal is exposed to routine cleaning agents and needs repeatable elastic recovery after clamping. An anodized aluminum perimeter protects the microglass pack and fits conventional gasket-seat terminals without the gel channel required by fluid-seal systems.

Key Features

Cleaning-compatible seal choice

EPDM offers a practical gasket interface for rooms where terminal surfaces are regularly wiped with compatible disinfectants.

Higher final-filter grade

H14 performance addresses more demanding particle-control specifications than the shallow H13 model in this gasket family.

Conventional clamp installation

The flat gasket seats against a smooth housing land and does not require a gel-filled receiver channel.

Technical Parameters

Filter Medium	Microglass mini-pleat
Filter Classification	H14
Media Pack Depth	70 mm
Perimeter Frame	Anodized aluminum
Gasket Material	Continuous EPDM
Seal Engagement	Uniform face compression
Separator System	Hot-melt pleat spacing
Typical Installation	Gasket-seat cleanroom terminal
Maintenance Focus	Inspect gasket recovery and sealing land at changeout
Customization	Available based on the intended application and operating environment.

Applications

Suitable for pharmaceutical, healthcare and controlled-process ceilings where H14 efficiency and a resilient dry gasket are preferred. It is especially relevant when sanitation chemicals make gasket material selection important, provided the chosen EPDM formulation is compatible with the site's cleaning agents.

Solutions for Your Application

The terminal seal may harden or swell after repeated disinfectant exposure.Specify the EPDM gasket against the actual chemical list and inspect elasticity during every filter replacement.

A dry gasket is mistaken for a gel-seal component and installed in the wrong receiver.Match the 70 mm panel to a flat gasket-seat housing and verify uniform clamp engagement before integrity testing.

Available Options

Select final face size, gasket location, upstream or downstream grille, and an EPDM compound compatible with the cleaning program.
