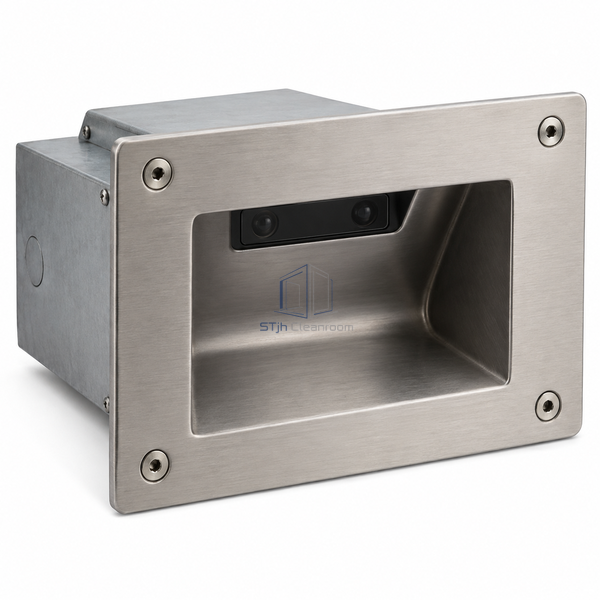

STJH recessed photoelectric toe switch with open sensing pocket on white.

STJH-FOOT-OPERATED-CLEANROOM-DOOR-SWITCH-TOE-PHOTOELECTRIC

Foot-Operated Cleanroom Door Switch Recessed Toe-Insert Photoelectric

Request door opening by placing a toe into a recessed photoelectric sensing pocket.

Toe insertion gives a defined activation position.
No moving pedal is required.
Low-wall mounting leaves the floor free of a loose switch.

Request a Quote Browse Products

Product Introduction

The foot switch mounts low in the wall and presents a recessed opening for the user's toe. A photoelectric sensor detects entry into the pocket without requiring a treadle to move. The assembly connects to a compatible door-control system through its low-voltage interface. Its recessed form keeps the activation point away from hand level and distinguishes it from a floor-standing pedal or a flat gesture sensor mounted near the skirting.

Key Features

Toe insertion gives a defined activation position.
No moving pedal is required.
Low-wall mounting leaves the floor free of a loose switch.

Technical Parameters

Detection	Photoelectric
User Action	Toe insertion
Installation	Recessed low wall
Supply	12 VDC
System Interface	Compatible CAN door system
Moving Pedal	None
Sensor Position	Within recessed pocket
Output Purpose	Door-opening request
Component Type	Foot activation station
Customization	Recess preparation and connection can suit the intended automatic doorway.

Applications

Hands-occupied medical access points.
Low-wall activation on compatible cleanroom doors.

Solutions for Your Application

Staff approach with both hands occupied.

The recessed pocket accepts a toe-operated request.

A loose pedal would obstruct cleaning around the floor.

The assembly is fixed into the low wall.

Available Options

Compatible control-system connection.
Installation-specific recess arrangement.

Planning a Foot-Operated Cleanroom Door Switch Recessed Toe-Insert Photoelectric specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
