Operators need physical confirmation of activation.
The treadle provides a distinct mechanical action.
STJH-FOOT-OPERATED-CLEANROOM-DOOR-SWITCH-STAINLESS-PEDAL

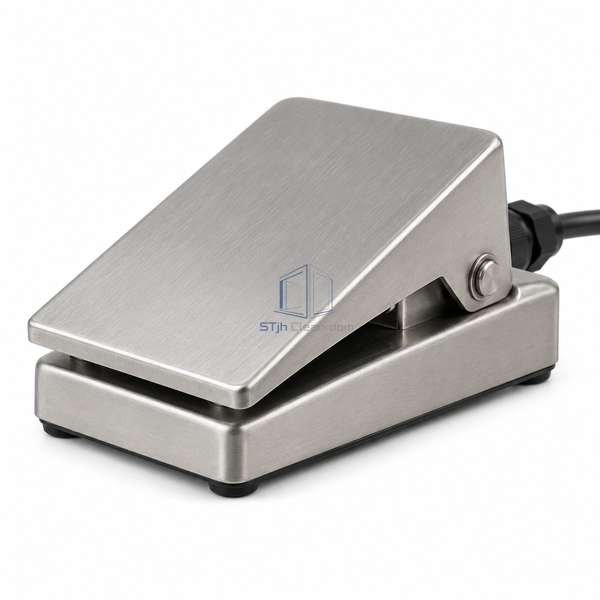

Foot-Operated Cleanroom Door Switch IP68 Stainless Mechanical Pedal
Provide a robust foot-operated electrical contact with a sealed stainless treadle assembly.
- Stainless housing supports practical cleaning around the switch.
- Mechanical travel provides tactile confirmation.
- A nonskid base helps retain the operating position.
Product Introduction
The switch uses a mechanical pedal contained in an all-stainless housing. Pressing the treadle operates an electrical contact, and the floor-standing base keeps the unit available where hands are occupied. A cable carries the signal to compatible control equipment. The sealed construction is intended for demanding environments and differs from optical foot sensors by providing a physical actuation surface with clear pedal travel and no sensing-distance setting.
Key Features
- Stainless housing supports practical cleaning around the switch.
- Mechanical travel provides tactile confirmation.
- A nonskid base helps retain the operating position.
Technical Parameters
| Actuation | Mechanical foot pedal |
|---|---|
| Housing | Stainless steel |
| Ingress Design | IP68 configuration |
| Contact Rating Options | 10 or 15 A at 250 VAC |
| Placement | Floor standing |
| Base | Nonskid |
| Connection | Wired cable |
| User Interface | Moving treadle |
| Signal Type | Mechanical electrical contact |
| Customization | Contact and cable arrangements can suit the connected door-control input. |
Applications
- Hands-free requests in wash-prone work areas.
- Medical equipment access stations using contact inputs.
Solutions for Your Application
The floor switch may slide during use.
The nonskid base helps hold the selected position.
Available Options
- Supported contact rating.
- Cable arrangement.
- Compatible control interface.
Planning a Foot-Operated Cleanroom Door Switch IP68 Stainless Mechanical Pedal specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
