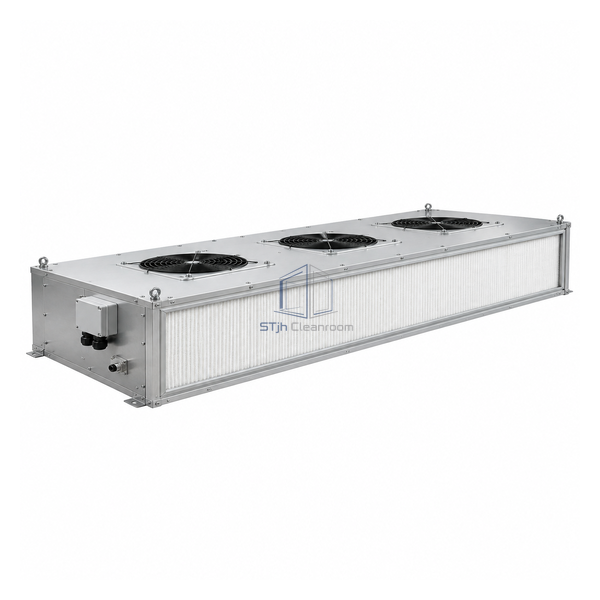

STjh 1000 by 1500 mm equipment FFU with triple EC fan grilles and extended H14 filter face

STJH-EQUIPMENT-FAN-FILTER-UNIT-3X5

Equipment Fan Filter Unit 3 × 5 ft

A long H14 equipment FFU for automated production tools and multi-station process cells.

1000 x 1500 mm long footprint
H14 filter, 50 mm deep
110-190 W operating range

Request a Quote Browse Products

Product Introduction

This long EFU uses a 1000 x 1500 mm footprint to follow extended automated equipment and multi-station cells. The 160 + 35 mm cabinet carries a 50 mm H14 filter, provides 260 Pa static pressure and uses the highest listed power range in the group at 110-190 W. Its rectangular coverage is selected for process length rather than maximum static pressure.

Key Features

Extended process coverage

The 1500 mm axis follows long tools and several adjacent work positions.

Large-format H14 stage

A 50 mm H14 filter provides the specified final filtration across the long face.

Duty matched to area

The 260 Pa static point prioritizes broad equipment coverage while retaining resistance capability.

Technical Parameters

Nominal Format	3 x 5
Footprint	1000 x 1500 mm
Cabinet Height	160 + 35 mm
Static Pressure	260 Pa
Power Input	110-190 W
Sound Level	46-53 dBA
Final Filter	H14, 50 mm
Installation	Long equipment-roof or process-cell mounting
Service Clearance	Required along the 1500 mm axis
Customization	Available based on the intended application and operating environment.

Applications

Recommended for long automated production equipment, multi-station cells and extended mini-environments. Mounting support, access and airflow distribution should be checked across the entire 1500 mm length.

Solutions for Your Application

Several small EFUs create gaps and multiple controls over one long tool.Use the 1500 mm module to cover the extended process with one coordinated airflow face.

Long housings can deflect if supported only at the corners.Distribute support along the perimeter and retain maintenance clearance on the long side.

Available Options

Confirm the H14 seal, power supply, fan control, equipment interface and lifting method. Final output should be verified across the complete tool opening.

Planning a Equipment Fan Filter Unit 3 × 5 ft specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
