Is the 1500 mm pair too narrow for the planned transport route?
This version increases the nominal set width to 1800 mm while keeping equal leaves.
STJH-EQUAL-DOUBLE-LEAF-CLEANROOM-SWING-DOOR-1800

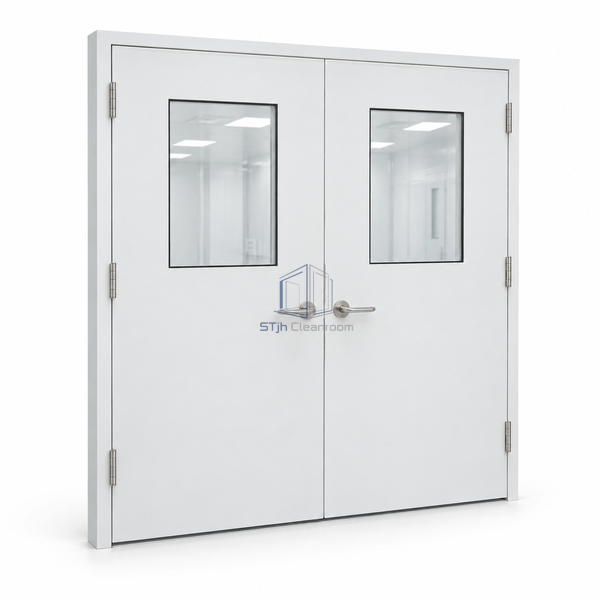

Equal Double-Leaf Cleanroom Swing Door 1800 mm Steel
An 1800 mm nominal equal pair for broader cart access through cleanroom partitions.
- A wider symmetric pair accommodates routes serving bulky carts.
- The same-height leaves preserve a level head detail.
- Powder-coated steel provides a continuous finished surface around each window.
Product Introduction
The 1800 mm nominal width gives this steel door set two broad, matching blades while retaining a 2100 mm height. Powder-coated faces enclose the sandwich construction, and the 50 mm leaves accommodate flush double-glazed vision panels. Stainless fittings serve the main operating points. Both blades can open for material movement; automatic lower seals meet the floor when closed without placing a permanent raised threshold across the transport path.
Key Features
- A wider symmetric pair accommodates routes serving bulky carts.
- The same-height leaves preserve a level head detail.
- Powder-coated steel provides a continuous finished surface around each window.
Technical Parameters
| Nominal Width | 1800 mm |
|---|---|
| Nominal Height | 2100 mm |
| Door Layout | Two equal hinged leaves |
| Blade Thickness | 50 mm |
| Face Sheet | 0.8 mm powder-coated steel |
| Observation Panel | 400 × 600 mm in each blade |
| Glazing Construction | Double glazing with two 5 mm tempered panes |
| Operating Hardware | Stainless steel lever handles and hinges |
| Floor Seal | Automatic retracting drop seal |
| Customization | Available for the cart dimensions and operating environment. |
Applications
- Clean production routes moving wider material carts.
- Equipment access between modular processing rooms.
Solutions for Your Application
Will a wide opaque door conceal crossing traffic?
The two rectangular windows provide a view through either side before opening.
Available Options
- Aluminum-honeycomb or rock-wool core construction.
- Door-closer selection for the required return action.
Planning a Equal Double-Leaf Cleanroom Swing Door 1800 mm Steel specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
