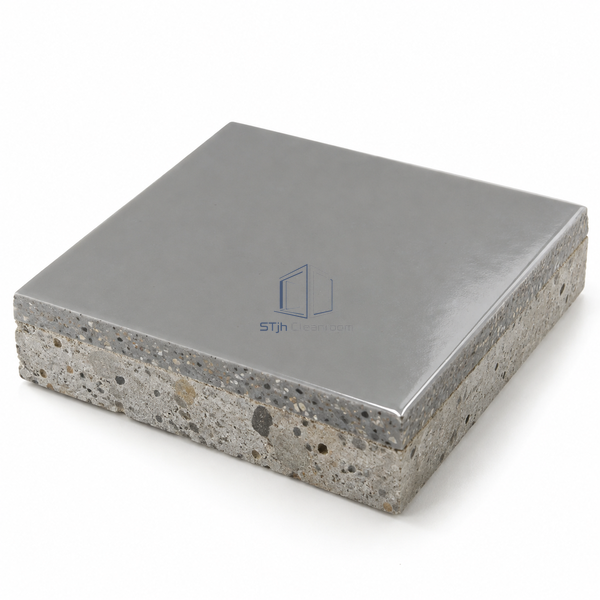

Substantial mineral body
The filler-bearing layer provides additional wearing depth while retaining a level, resin-rich surface for routine machine cleaning.
STJH-EPOXY-SELF-LEVELING-FLOORING-QF30
Epoxy Self-Leveling Flooring 3 mm Quartz-Filled
A mineral-filled epoxy overlay offering a deeper wearing body for repeatedly used clean industrial routes.
- 3 mm nominal selection
- Graded aggregate within a total-solids epoxy body
- Smooth finish without loose surface grit
About This Product
QF30 is the nominal 3 mm selection within a 2-4 mm self-smoothing epoxy construction. A separate graded filler component is blended into the resin to create a dense aggregate-rich body, with pigment distributed through the mix. The cured face remains smooth rather than exposing a broadcast texture. This configuration is suited to repetitive trolley paths where a thin sealing film would provide little material above the slab.
Key Features
Measured material placement
Application by gauge-controlled spreading helps maintain the chosen depth across aisles, avoiding thin patches at local high points.
Low-porosity construction
A dense cured matrix limits liquid entry into the overlay; joints and perimeter terminations remain separate details in the floor design.
Technical Parameters
| Binder | Total-solids epoxy |
|---|---|
| Nominal Thickness | 3 mm |
| Supported Layer Range | 2-4 mm |
| Aggregate | Graded mineral filler |
| Surface | Dense smooth gloss |
| Mixed Density | Approximately 1.79 kg/L at 25 °C |
| Material Consumption | Approximately 1.8 kg/m² per mm |
| Base Preparation | Mechanically prepared, primed concrete |
| Application Temperature | 10-30 °C |
| Customization | Available based on the intended application and operating environment. |
Applications
Consider QF30 for internal distribution aisles, packaging rooms and clean manufacturing floors carrying frequent wheeled traffic. Floor loading still depends on the supporting slab and wheel contact area; a thicker resin overlay does not repair structurally weak concrete beneath it.
Solutions for Your Application
Wear tends to concentrate in a narrow trolley track.
Maintain the specified aggregate-filled depth through that route and avoid feathering the wearing layer.
An old slab contains ridges that would reduce local coating thickness.
Grind high spots and repair depressions before setting the finished overlay level.
Available Options
Select the required shade and nominal build within the supported range. Add compatible cove returns where wall cleaning is necessary, with transitions planned for doors and existing drainage.
Planning a Epoxy Self-Leveling Flooring 3 mm Quartz-Filled specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
