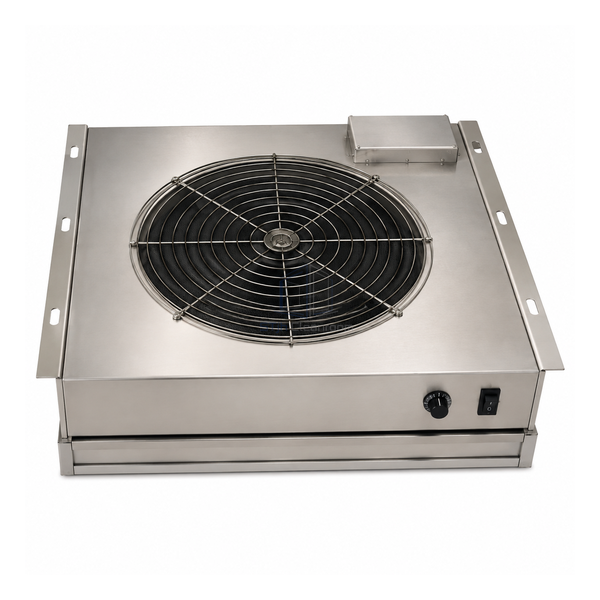

STJH 610 x 610 mm High-Flow EC Fan Filter Unit

The highest-flow square format in this three-model group, intended for larger equipment enclosures.

610 mm square filter module
Approximately 10 m³/min airflow
Approximately 65 W unit power consumption

Request a Quote Browse Products

Product Introduction

A 610 mm square module and higher-output brushless fan distinguish this unit from the 400 and 500 mm versions. Overall height remains 185 mm including the intake guard, while nominal delivery rises to approximately 10 m³/min. This format suits a wider roof opening and needs a return-air path sized for the increased flow.

Key Features

Six-point mounting layout

Six perimeter mounting slots distribute support around the wider module when it is fixed to a suitable enclosure frame.

Serviceable inlet arrangement

The protected top inlet remains accessible for inspection when maintenance clearance is reserved above the enclosure.

Independent speed setting

Local adjustment allows the module output to be balanced against the enclosure opening and return resistance.

Technical Parameters

Nominal Module Dimensions	610 × 610 mm mounting footprint; 185 mm overall height including intake guard, excluding cable and service clearance
Nominal Airflow	Approximately 10 m³/min
Average Outlet Velocity	Approximately 0.51 m/s
Final Filter	HEPA; filtration configuration rated at least 99.99% at 0.3 µm
Housing Material	SUS430 stainless steel, bright annealed finish
Fan and Control	One brushless DC fan with variable-speed control
Power Supply	AC 100 V, single phase, 50/60 Hz
Nominal Power Consumption	Approximately 65 W
Approximate Weight	12 kg
Customization	Available based on the intended application and operating environment.

Applications

Intended for larger precision-process covers, instrument enclosures and electronics work cells. Supporting structures must carry the unit independently; the filter face is not a load-bearing surface. Installed cleanliness depends on the complete enclosure and operating conditions.

Customer Product Concerns and Solutions

A larger enclosure needs more replacement air than the smaller modules can supply.Use the 10 m³/min reference duty to assess demand, then balance the installed flow against leakage and return resistance.

Higher airflow causes excessive turbulence around the process.Adjust fan speed and provide adequate return area; check the working zone rather than relying on the maximum setting.

Available Options

Discuss the return-air layout, mounting details, final-filter requirement and electrical supply for the larger enclosure. Any alternative arrangement must be matched to the actual process before ordering.

Planning a STJH 610 x 610 mm High-Flow EC Fan Filter Unit specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
