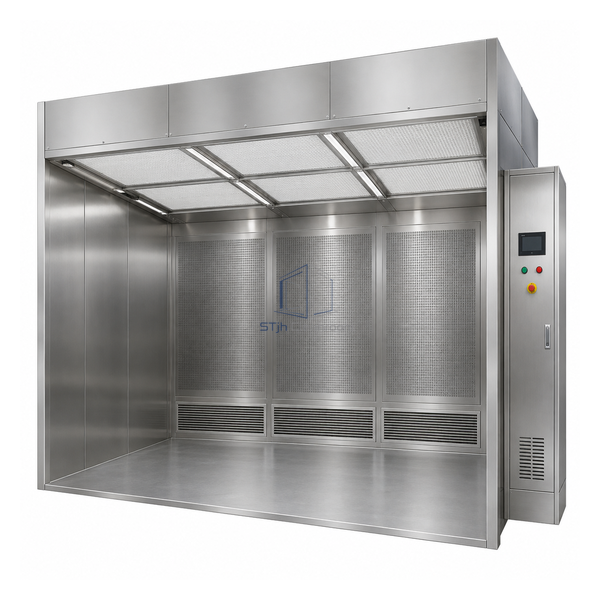

STjh deep 3400 by 3000 mm downflow containment booth with H14 roof grid and full rear recirculation wall

STJH-DOWNFLOW-CONTAINMENT-BOOTH-3400X3000

Downflow Containment Booth 3400 × 3000 mm Deep

A deep recirculating booth for large drums, processing skids and powder tasks requiring substantial front-to-back clearance.

3000 mm deep process zone
Approximately 11000 m³/h downflow
Rear-wall recirculation

Request a Quote Browse Products

Product Introduction

This 3400 x 3000 mm booth prioritizes process depth over the maximum width of the 4100 mm model. Its published airflow is approximately 11000 m³/h downflow with 1400 m³/h exhaust, using H14 final filters and rear-wall recirculation. The 3000 mm depth suits skids or large drums that need operator access around the front and sides.

Key Features

Deep equipment clearance

The three-metre depth accommodates skids and drum handling that project farther into the booth.

Recirculated clean downflow

Rear-wall return air passes through H14 filtration before re-entering the work zone.

Balanced partial exhaust

The 1400 m³/h exhaust draws replacement air inward at low level to support containment.

Technical Parameters

Front Size	3400 W x 3000 D mm
Downflow Rate	Approximately 11000 m³/h
Exhaust Rate	Approximately 1400 m³/h
Nominal Velocity	0.30 m/s
Velocity Range	0.1-0.6 m/s
Final Filter	H14 HEPA
Prefilter	G3 or G4
Airflow Pattern	Downflow with rear-wall recirculation
Typical Process	Deep drum or skid handling
Customization	Available based on the intended application and operating environment.

Applications

For deep powder-handling layouts with large drums or process skids. Maintain clear low-level induction and rear-return paths around the installed equipment.

Solutions for Your Application

A wide but shallow booth cannot contain a deep skid and operator access.Use the 3000 mm depth to bring the complete operation inside the protected zone.

Equipment blocks the rear-wall return grille.Reserve a service gap and validate return airflow with the skid installed.

Available Options

Select worktable, ventilated process surface, induction curtains or plates, and control monitoring. Width and depth can be customized to the skid.
