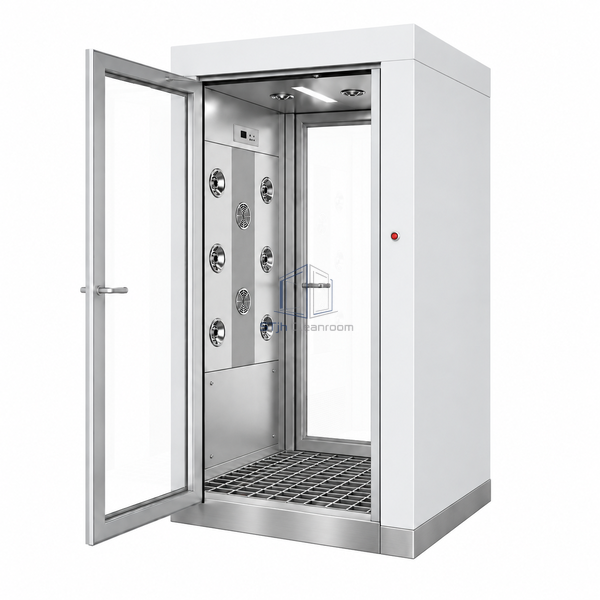

STjh single-person air shower with an open-bar grating floor, raised base plenum and lower service access panel

STJH-DOUBLE-SIDED-SINGLE-PERSON-AIR-SHOWER-GRATING

Single-Person Cleanroom Air Shower Double-Sided Grating-Floor

A raised grating-floor personnel shower with bilateral and overhead jets around a single-user passage.

Raised grating floor
2200 mm cabinet height
Two-wall plus ceiling jets

Request a Quote Browse Products

Product Introduction

The grating-floor model reaches 2200 mm overall height while maintaining the family's 770 x 1000 x 1935 mm clear passage. Its raised open-pattern walking surface distinguishes it from the sealed floor case and floorless versions. Eighteen adjustable nozzles treat the user from both sides and above during the interlocked cycle.

Key Features

Defined open-pattern platform

The grating creates a robust raised walking surface and visually separates the chamber from adjacent flooring.

Full surrounding nozzle field

Eighteen outlets distribute cleaning air from both walls and the ceiling.

Single-user sequencing

Interlocked doors keep the compact passage isolated during the programmed blow period.

Technical Parameters

Overall Size	1100 x 1000 x 2200 mm
Usable Passage	770 x 1000 x 1935 mm
Personnel Capacity	One
Total Nozzles	18
Discharge Locations	Two side walls and ceiling
Walking Surface	Raised grating floor
Door Type	Manual aluminium
Access Sequence	Interlocked entry and exit
Electrical	AC 200 V, three phase, 50/60 Hz
Customization	Available based on the intended application and operating environment.

Applications

Intended for personnel routes where a defined raised platform is preferred, including clean manufacturing entrances with underfloor return or wash-down considerations. The surrounding threshold must match the elevated walking surface.

Solutions for Your Application

A solid base may trap debris on the chamber floor.Use the grating surface where the cleaning plan benefits from an open-pattern platform.

The extra floor height could conflict with the doorway headroom.Coordinate the 2200 mm overall cabinet height and threshold level before the wall opening is finished.

Available Options

Define grating material, base transition, door orientation, cabinet finish and control package. Cleaning access below the grating can be incorporated into the service plan.

Planning a Single-Person Cleanroom Air Shower Double-Sided Grating-Floor specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.

Talk to Our Team
